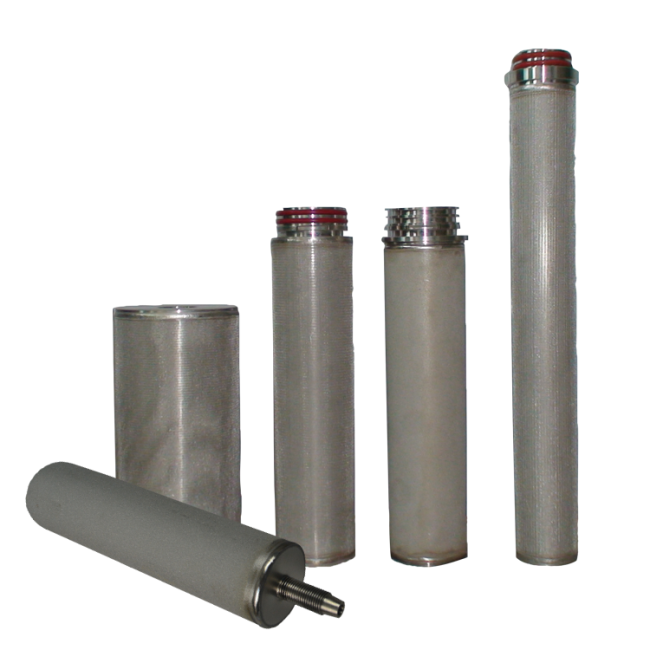

SUS304 SUS316L Stainless Steel Mesh 100um Sintered Metal Cartridge Filter
Sintering SUS 304 316L Stainless Steel Mesh Cylindrical Filter Cartridge
Features and Benefits of Stainless Steel Filter Cartridge:
Extremely robust construction, high mechanical strength
Ideal for aggressive solvents,viscous and hot solutions
Backwashable and cleaned by chemical solvents, hot water,steam, long service life
Pleated cartridge provides higher filtration area
Removal rating from 0.45 to 100 microns
Typical Applications of Stainless Steel Filter Cartridge
Steam filtration:
Prefiltration and decarbonization of high viscosity liquid filtration;
Removing impuriteis of liquids in petrochemical industry;
Agressive solvents filtration;
Highly corrosive liquid and gas purification;
Liquids or gases filtration in high temperature and pressure;
| Materials Of Construction | STP | Filter Media: | SUS316L Mesh Pleated | |||
| Micron Rating: | 0.45-100 um | |||||
| Porosity: | 60%-65% | |||||
| STS | Filter Media: | SUS316L Powder Sintered | ||||
| Micron Rating: | 1.0, 3.0, 5.0, 10um | |||||
| Porosity: | 35%-45% | |||||
| O-rings/gaskets(only for 222, 226, DOE ends): | Silicone, Nitrile, EPDM, Viton, Te, etc | |||||
| Filtratioin Efficiency: | 95%-99% | |||||
| Cartridge Dimensions | Outer Diameter | 60mm/80mm | ||||
| Length(based on Cut Ends) | 10"- 250mm, 20"- 500mm, 30"-750mm, 40"- 1000mm | |||||
| Operating conditions | Max.Operating Temperature.: | 300℃ (572℉) | ||||
| Max. Differential Pressure: | 6.0 bar | |||||
| PH Value compatibility: | 1-4 | |||||
