PLC 7KW Cosmetic Filling Machine
Automatic Rotary PLC Filling Capping Machine for Mascara Lip Gloss
Production Flow:
Manually place containers to the conveyor -----auto filling (with container detection)-----auto wiper sorting and feeding---wiper detector then press-----auto brush feeding -----auto servo capping----auto discharging
Application for Mascara/Lip Gloss Filling Capping Machine

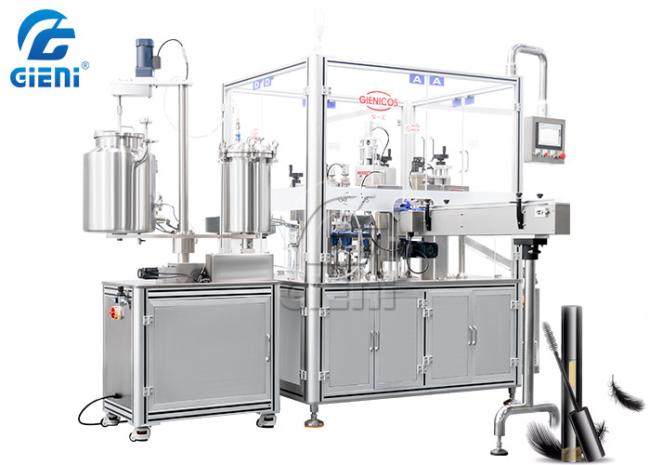

The GIENI® JQR-02 is designed for production of both lip gloss and mascara filling and capping, very smart and flexible rotary type machine, less space needed
Features of Mascara/Lip Gloss Filling Capping Machine
◆ mechanical cam mechanism;

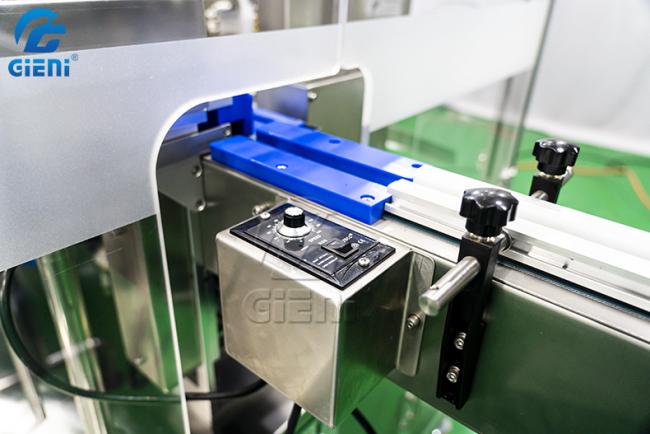

◆ equipped with conveyor, width adjustable, speed adjustable;

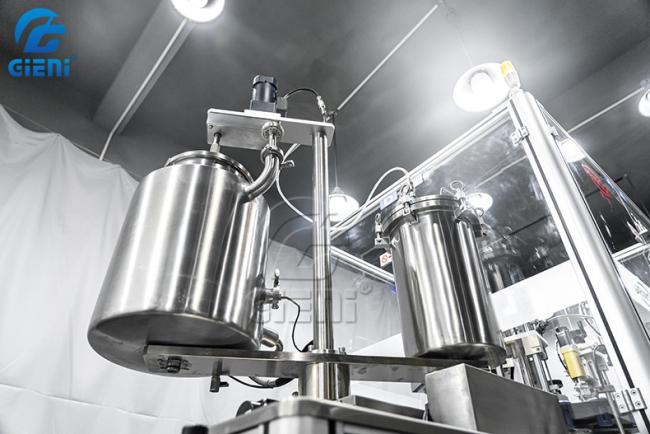

◆ equipped with 2 filling tanks, each tank volume is 20L, one is for mascara, another is for lip gloss (two same function also ok, for backup)
| mascara tank | pressure function |
| lip gloss tank | heating/stirring function |
| Features: outer layer is SUS304, inner layer which contact material directly is SUS316L, which is medical grade | |
◆ one nozzle filling, another nozzle for backup (for fast color change), filling volume adjustable
◆ with reset functions on touch screen while changing packagings;
◆ fast disassemble valve for cleaning and changing materials in 90s, no need takes hours;

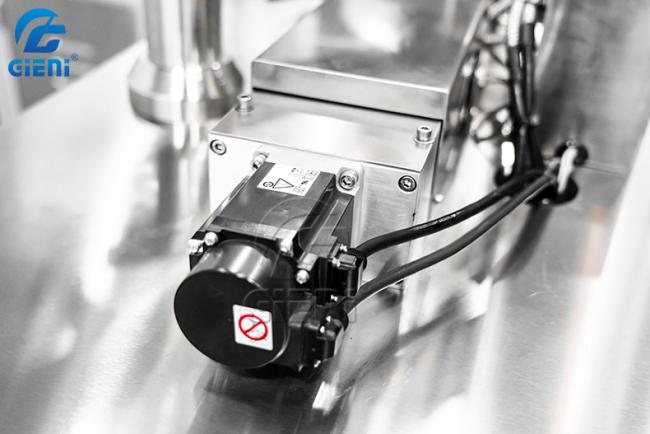

◆ filling controlled by servo motor, high precision up to ±0.1g;

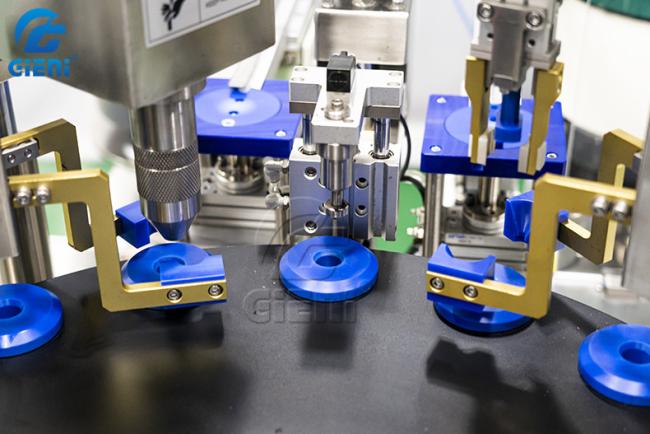

◆ mechanical arms to pick up the containers, caps and wipers to ensure the machine's stable working;
◆ wiper and brush vibration bowl are options
