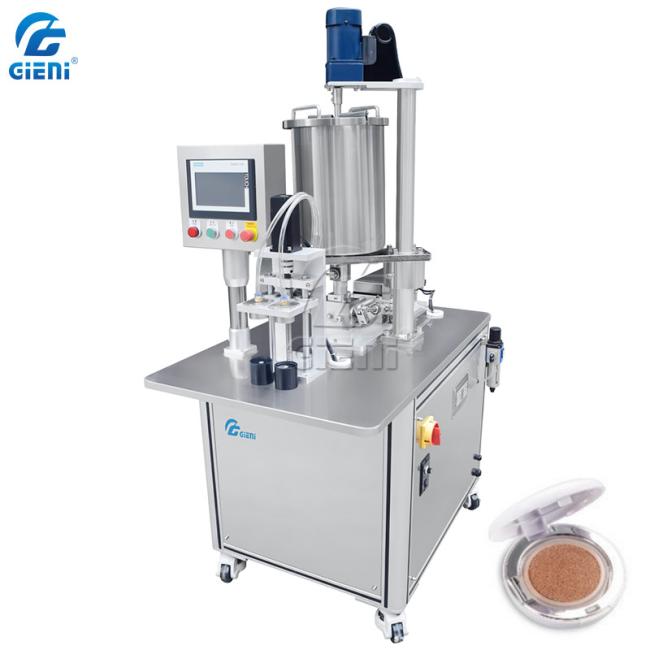

Dual Nozzles Air Cushion BB Cream Filler CC Cream Filling Machine
Dual Nozzles Air Cushion BB Cream Filler CC Cream Filling Machine
Application for BB/CC Cream Filler
The GIENI® JQ02 is designs for filling air cushion BB/CC cream. The main part of the machine is made of stainless steel, which is easy to clean and corrosion resistant. The main electrical uses Mitsubish, Scheneider, Panasonic, the gas path uses Airtac. The mechanism is compact structure, small occupation, high efficiency, stable and reliable.
Features of BB/CC Cream Filler
◆ tank is 15L with stirring function;
◆ filling and lifting adopt servo motor driven, convenient operation and precise dosing;
◆ 2 pcs filling at a time ( customized available)
◆ PLC adopts Mitsubishi/Siemens Brand;
Specifications of BB/CC Cream Filler
|
Model |
JQ02 |
|
Outer Dimension |
1950 X 1300 X 1300mm (LxWxH) |
|
Voltage&Power consumption |
AC220V,1P,50/60HZ |
|
Power |
1.5KW |
| Air Supply | 0.6-0.8Mpa, ≥300L/min |
|
Output |
10-16pcs/min, according to formula |
| Max.filling volume | 20ml |
