Stainless Slotted Wedge Wire Filter Mesh Water Well Screen Filter Tube
Stainless Slotted Wedge Wire Filter Mesh Water Well Screen Filter Tube
1. Induction:
The Wedge wire screen filter tube is made up of support wire and filter wire. with the material of stainless steel 302,304,316,304L,316L.

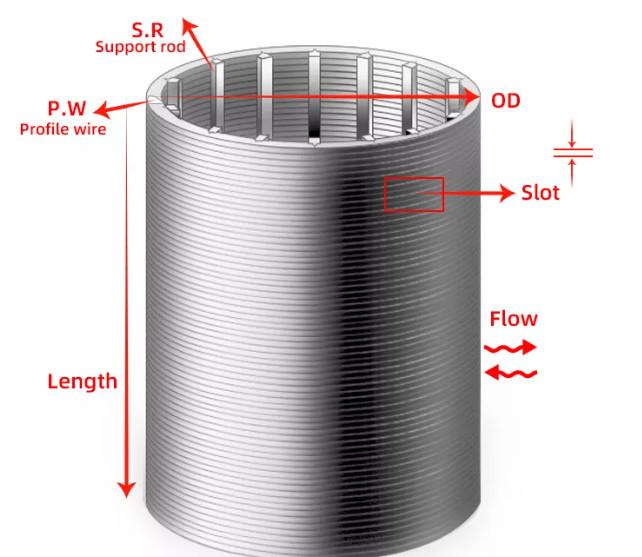

2. Component of the Wedge wire Johnson screen filter tube:
The support wires can be round wires, triangular wires or trapezoidal wires, while the filter wires is triangular wires(V shape wires).
3. Characteristics of the Wedge wire Johnson screen filter tube:
precise aperture size, high filter precision,firm structure, high-temperature resistance, corrosion resistance and mechanical performance is good,long service life, safe and reliable, etc. Can be used in various media filtration and screening.
4. Specifications for your reference of the Wedge wire Johnson screen filter tube:
| outside diameter | Sewing | Standard length | Specifications of filter wire | Specifications of support wire |
| 4'' ,6'' ,8'', 10'',12'' and etc. |
0.1-35mm | 50-6000mm | 2.2*3.0mm, 2.3*3.0mm, 3.0*4.6mm, 3.0*5.0mm |
3.8mm/22pieces, 3.8mm/32pieces. 3.8mm/48pieces, 3.8mm/50pieces |
5. Application:
Widely used in coal,mine,water treatment, food industry and etc field.
