Industrial 0.01mm Thick SUS 316L Wire Mesh Water Filter , Metal Filter Disc
Industrial Metal Fixed Edge Stainless Steel Wire Mesh Metal Filter Disc
metal filter disc Types:

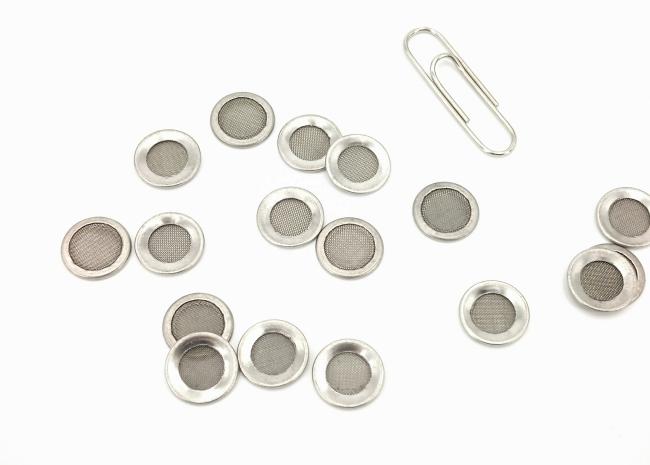

Single-layer and multi-layer; edge covered disc, multi-layer welded disc, multi-layer sintered disc etc.
Product material:
Stainless steel 304/ 316, perforated metal meshetc.
Edge Material:
Stainless steel sheet, copper sheet, galvanized sheet, aluminum sheet,rubber ect.
Process Technique:
Spot welded,edge covering and sintered.
metal filter disc Disc Sizes:
Any size can be made according to your requirement, and we also have many exist mould.
Application:
The metal filter disc is used in the high-viscosity melt filter device. It is easy to remove hard materials and condense. Different materials, sizes and custom designs are provided. The material filter can be reused and repeatedly cleaned to meet your different filtering needs. These metal filter discs can be used in the absorption, evaporation and filtration process of petroleum, chemical, metallurgy, food and beverage, medicine and automobile industries.
metal filter disc Data:
|
Filteration Class
|
Filtering Rating (um) |
Pore Size Max. (um) |
Permeability 10-12m² |
Breathability m3/h.m2.KPa |
Thickness (mm) |
Compression Strength MPa/ cm² |
| S9 | 0.2 | 2.5 | 1 | 3 | 3.0 | |
| S8 | 0.5 | 4 | 3 | 3 | 3.0 | |
| S7 | 1.0 | 6 | 5 | 3 | 3.0 | |
| S6 | 2.5 | 10 | 0.09 | 10 | 3 | 3.0 |
| S5 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | |
| S4 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
| S3 | 30 | 60 | 3.82 | 350 | 3 | 3.0 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | |
| S2 | 40 | 100 | 9.43 | 700 | 3 | 3.0 |
| S1 | 65 | 160 | 15.1 | 1000 | 3 | 3.0 |
The Application
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber indust
Plating industry as acid cleaning mesh.
The way of weave
The Package and Delivery:
