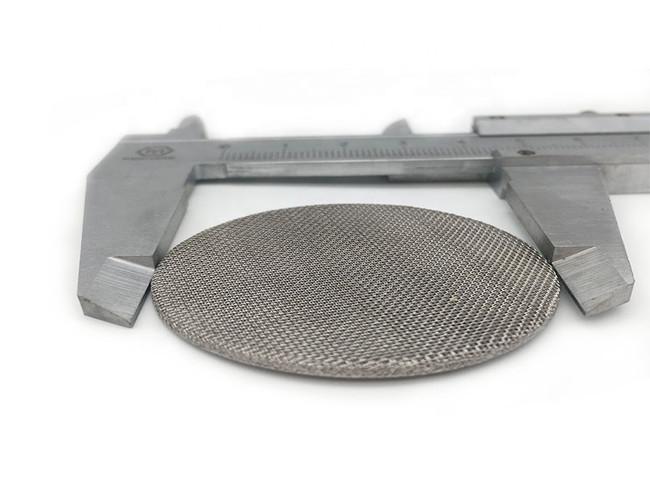

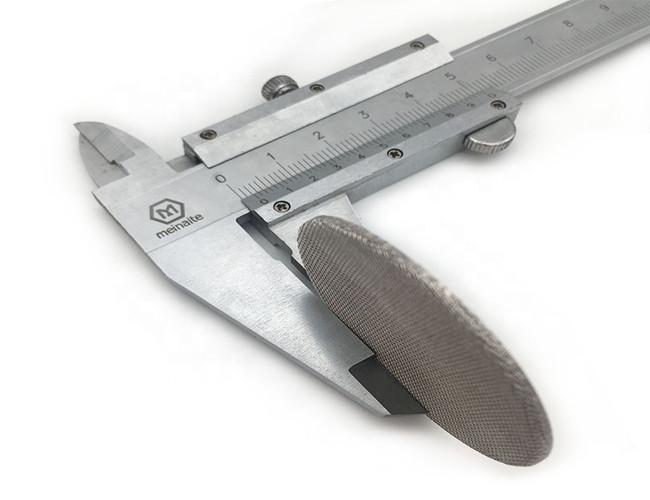

SGS Certified 90% 2.5um Stainless Steel Filter Disc For Particle Removal

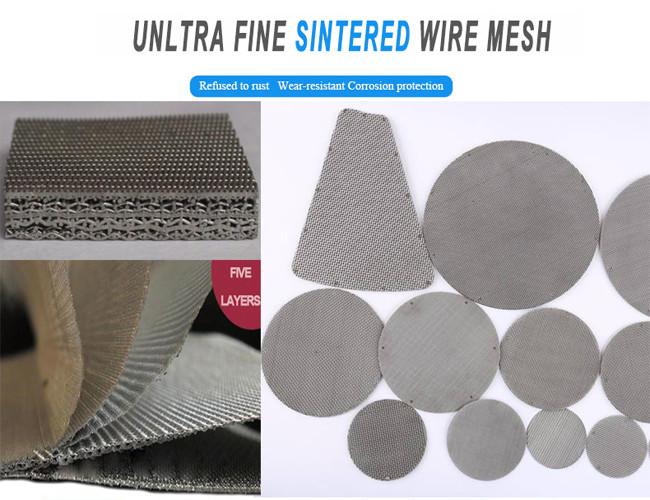

The sintered filter is made of stainless steel wire--304,316, through the sub-screen, forming, sintering to micro-filter components. According to user requirements can produce a variety of shapes, structure, different size, porosity of porous components, such as: hood, cap, sheet, tube, rod-like filter element.
Specifications:
1.Diameter: OD5mm-300mm (or as your request)
2.Thickness : 0.5mm-10mm (or as your request)
3.Filtering Rating : 0.5um-70um
Technical Data:
| Filtering precision | Porosity |
Permeability
(m3/h.m2.kpa)
|
Compressive strength |
Max. differential Pressure |
|
0.5um - 70um
|
20-50% | 3~1300 | 3 Mpa | 0.6Mpa |
|
Filteration Class
|
Filtering Rating (um) |
Pore Size Max. (um) |
Permeability 10-12m² |
Breathability m3/h.m2.KPa |
Thickness (mm) |
Compression Strength MPa/ cm² |
| S9 | 0.2 | 2.5 | 1 | 3 | 3.0 | |
| S8 | 0.5 | 4 | 3 | 3 | 3.0 | |
| S7 | 1.0 | 6 | 5 | 3 | 3.0 | |
| S6 | 2.5 | 10 | 0.09 | 10 | 3 | 3.0 |
| S5 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | |
| S4 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
| S3 | 30 | 60 | 3.82 | 350 | 3 | 3.0 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | |
| S2 | 40 | 100 | 9.43 | 700 | 3 | 3.0 |
| S1 | 65 | 160 | 15.1 | 1000 | 3 | 3.0 |
The application:

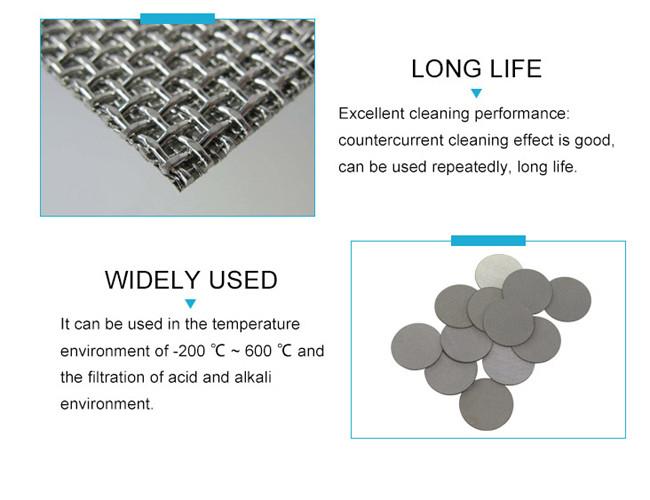

Filter disc sintered get used for the filtration of corrosive liquids. The filter discs also get used for catalyst recovery. Plus, the filter disc can get utilized for steam processing also. Secondly, the disc filter has usage in different types of industries.
- Aviation industry
- Chemical industry
- Petrochemical industry
- Environmental area
- Automotive industry
- Plastic industry
- Food and Beverage industry
