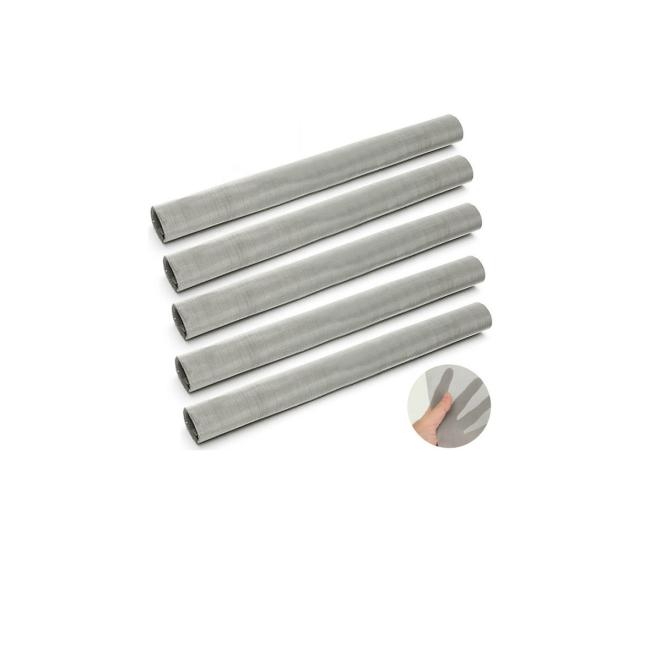

2mm Wire 316 Stainless Steel Woven Wire Mesh Sheets Marine Grade
Corrosion Resistant 316 Marine Grade Stainless Steel Woven Mesh Filter Material
Product Description
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Diameter: 0.0008″-0.08″
Open Area: 25-84.6
Weight (LB) /100 Square Foot:2.53-41.1
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or caseDelivery Time: 5 days for stock material
Characteristic:
Good acid, alkali and corrosion resistance;
High strength, tension, toughness and abrasion resistance, durable;
Regular temperatures handling, specifically easy plastic-type material finalizing, helps make the use potential for stainless screen is diverse
High finish, no surface treatment, easy to maintain
Application
Stainless Steel Filter Material Due to steel with acid solution, alkaline, put on-tolerant, heat-resistant properties, widely used in acid solution, alkali surroundings testing mesh and filtering system filter, for the slurry world wide web petroleum industry, compound fiber content sector, electroplating market for pickling web, business and the building market, filter beach sand, filtering fluid and gasoline, aero-room, petrochemical, chemical as well as other industries.Stainless Steel Woven Mesh Filter Material It can also be useful for mechanized accessory security, and so on, but it may also be accustomed to replace the wood made surfaces and ceilings created.
Spcification
|
Meshes Per Linear Inch |
Diameter of Wire |
Width of Opening |
Open Area, % |
||
|
Inches |
mm |
Inches |
mm |
||
|
10 x 10 |
0.047 |
1.2 |
0.053 |
1.34 |
28.1 |
|
14 x 14 |
0.032 |
0.8 |
0.039 |
1.52 |
29.8 |
|
16 x 16 |
0.028 |
0.7 |
0.035 |
0.89 |
30.5 |
|
18 x 18 |
0.018 |
0.45 |
0.038 |
0.96 |
48.3 |
|
20 x 20 |
0.016 |
0.40 |
0.034 |
0.86 |
46.2 |
|
24 x 24 |
0.014 |
0.35 |
0.028 |
0.71 |
44.2 |
|
35 x 35 |
0.012 |
0.30 |
0.017 |
0.43 |
33.8 |
|
40 x 40 |
0.0095 |
0.24 |
0.016 |
0.40 |
38.4 |
|
50 x 50 |
0.009 |
0.23 |
0.011 |
0.28 |
30.3 |
|
60 x 60 |
0.0075 |
0.19 |
0.009 |
0.22 |
30.5 |
|
70 x 70 |
0.0065 |
0.17 |
0.008 |
0.20 |
29.8 |
|
80 x 80 |
0.0070 |
0.18 |
0.006 |
0.15 |
19.4 |
|
90 x 90 |
0.0055 |
0.14 |
0.006 |
0.15 |
25.4 |
|
100 x 100 |
0.0045 |
0.11 |
0.006 |
0.15 |
30.3 |
|
120 x 120 |
0.0040 |
0.10 |
0.0043 |
0.11 |
26.6 |
|
165 x 165 |
0.0019 |
0.048 |
0.0041 |
0.10 |
44.0 |
|
180 x 180 |
0.0020 |
0.050 |
0.0035 |
0.09 |
41.1 |
|
220 x 220 |
0.0019 |
0.048 |
0.0026 |
0.066 |
33.0 |
|
250 x 250 |
0.0016 |
0.040 |
0.0024 |
0.061 |
36.0 |
|
400 x 400 |
0.0010 |
0.025 |
0.0015 |
0.038 |
36.0 |
|
500 x 500 |
0.0010 |
0.025 |
0.0011 |
0.028 |
25.0 |
|
635 x 635 |
0.0009 |
0.022 |
0.0006 |
0.015 |
14.5 |
