1mm Thickness 300Mesh Porous Stainless Steel Discs Food Grade
Food Grade Stainless Steel Wire Mesh Filter Cloth Mesh Metal Filter Disc

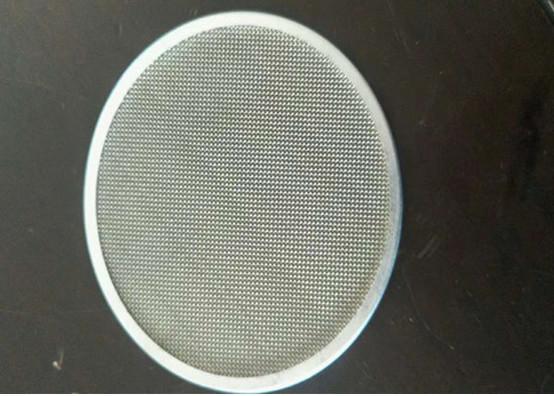

Steel filter disc, also called stainless steel mesh metal filter, is a metal filter disc. We divide the manufacturing process into three technologies. Initially, we chose high-quality stainless steel wire.
The metal filter disc will be woven or perforated. Then, according to the special requirements of customers, we will choose different materials for edging. More importantly, in the manufacturing process, we can provide stainless steel filter discs of different sizes, different shapes and different weaving methods, all of which can be produced according to your specific requirements. The stainless steel filter disc has excellent resistance to acid and alkali and can be used under very harsh conditions. Especially suitable for acid gas filtration.
| Wire materials | SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc. |
| Wire diameters | 0.01 mm - 5 mm. |
| Disc diameters | 5 mm - 600 mm (custom size: 8 mm - 3800 mm). |
| Weaving methods |
plain weave, twill weave, dutch weave, etc. |
| Layer | single layer or multiple layers. |
| Filter disc shapes | round, rectangular, square, crescent and semicircle, etc. |
| Marginal materials | copper, aluminum, stainless steel, rubber, etc. |
| Filtration precision | 0.2 µm - 100 µm. |
-
Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance,
-
accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
-
Chemical properties: acid, alkali and corrosion resistance.
-
Process properties: uniform controlled porosity, long service life, precision punched burr-free,
-
compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.
Applications:
Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.
-
Water filtration: sewage water treatment and distribution, etc.
-
Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.
-
Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.
-
Metallurgy: acid cleaning mesh in electric plating industry, etc.
-
Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.
Specification:
|
Items |
Mesh |
Wire Diameter (mm) |
Aperture (mm) |
Material (AISI) |
|---|---|---|---|---|
|
STD-D01 |
7 × 7 |
1.00 |
2.63 |
SUS304 |
|
STD-D02 |
10 × 10 |
0.60 |
1.94 |
|
|
STD-D03 |
12 × 12 |
0.50 |
1.62 |
|
|
STD-D04 |
16 × 16 |
0.40 |
1.19 |
|
|
STD-D05 |
16 × 16 |
0.35 |
1.24 |
|
|
STD-D06 |
18 × 18 |
0.35 |
1.06 |
|
|
STD-D07 |
20 × 20 |
0.40 |
0.87 |
|
|
STD-D08 |
24 × 24 |
0.26 |
0.80 |
|
|
STD-D09 |
30 × 30 |
0.30 |
0.55 |
|
|
STD-D10 |
35 × 35 |
0.17 |
0.56 |
|
|
STD-D11 |
40 × 40 |
0.23 |
0.40 |
|
|
STD-D12 |
50 × 50 |
0.20 |
0.31 |
|
|
STD-D13 |
60 × 60 |
0.15 |
0.27 |
|
|
STD-D14 |
70 × 70 |
0.12 |
0.24 |
|
|
STD-D15 |
80 × 80 |
0.13 |
0.19 |
|
|
STD-D16 |
90 × 90 |
0.12 |
0.16 |
|
|
STD-D17 |
100 × 100 |
0.10 |
0.15 |
|
|
STD-D18 |
120 × 120 |
0.09 |
0.12 |
|
|
STD-D19 |
150 × 150 |
0.063 |
0.11 |
|
|
STD-D20 |
180 × 180 |
0.053 |
0.09 |
|
|
STD-D21 |
200 × 200 |
0.053 |
0.07 |
