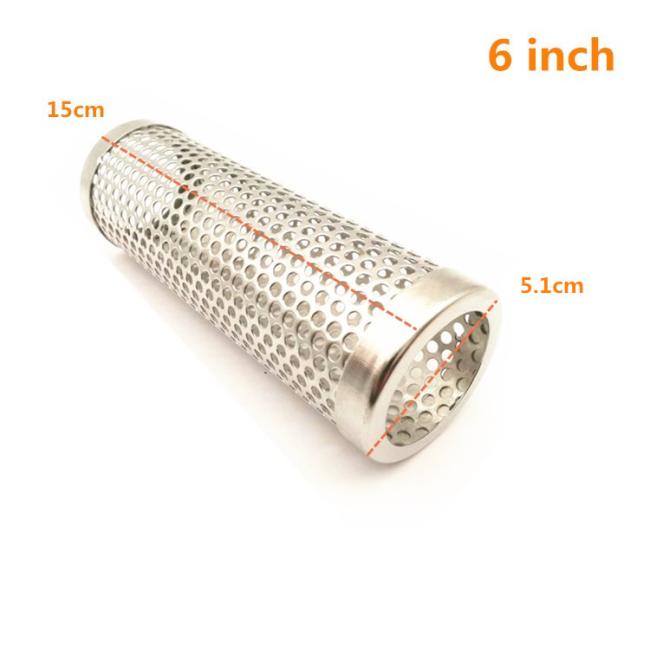

5mm Hole 1.6mm Thickness Stainless Steel Filter Tube With Handle

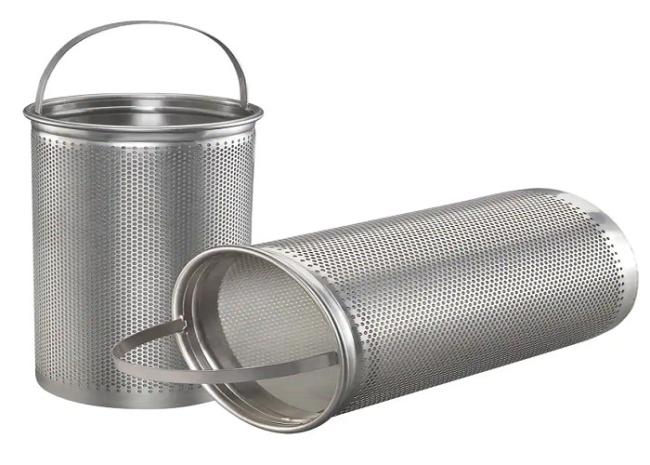

Stainless Steel 304 316 Customized Size Mesh Filter cylinder With handle
The Mesh Filter Cylinder includes the Perforated mesh filter and the woven mesh filter.Each one has advantages.
The Perforated mesh filter cylinder has same holes and higher strength.The woven mesh filter cylinder is smooth passing and higher passing rate.It is more softer.The Perforated mesh filter usually is the outer of the filter,more precision filter materials inside.Of course,it is also can be used single for big foreign matter.
The filter with handle divides into two handles and one handle.The handle can let you touch the liquid more less and protect your hands.
The Perforated Mesh Filter Micro Perforated holes sheet
| Hole Diameter |
Staggered Centers
|
Sheet Thickness | Open Area | ||
| 0.045'' | 1.14mm | 0.06 | 0.032'' | 0.81mm | 37.00% |
| 1/16'' | 1.59mm | 1/8'' | 0.032'',0.040'' | 0.81mm,1.02mm | 23.00% |
| 3/32'' | 2.38mm | 5/32'' | 0.040'',0.063'' | 1.02mm,1.60mm | 33.00% |
| 7/64'' | 2.78mm | 3/16'' | 0.32'' | 0.81mm | 29.00% |
| 1/8'' | 2.78mm | 3/16'' | 0.320'',0.040'',0.050'',0.063'',0.125'' | 0.81mm,1.02mm,1.27mm,1.60mm,3.17mm | 40.00% |
| 5/32'' | 3.97mm | 3/16'' | 0.320'',0.063'',0.090'' | 0.81mm,1.60mm,2.29mm | 63.00% |
| 3/16'' | 4.76mm | 1/4'' | 0.320'',0.040'',0.050'',0.063'' | 0.81mm,1.02mm,1.27mm,1.60mm | 50.00% |
| 3/16'' | 4.76mm | 3/8'' | 0.040'', | 1.02mm | 23.00% |
| 1/4'' | 6.35mm | 5/16'' | 0.063'' | 1.60mm | 58.00% |
| 1/4'' | 6.35mm | 3/8'' | 0.063'',0.125'' | 1.60mm,3.17mm | 40.00% |
| 1/2'' | 12.7mm | 11/16'' | 0.063'' | 1.60mm | 48.00% |
We supply for you:
The customized size and shapes as your needs.
The Package and Delivery
