Industrial Filtration 99% ID 316mm Intertank Screens For Water Intake
Stainless Steel 304/316 Customized Sieve Bend Screen Accessory For Water Intake
The Introduction
Sieve Bend Screen is also called Wedge Wire Screen filter.It one kind of Johnson screen.It can be the accessary of the device.
Sieve Bend Screen are used in static sieves for either dewatering or classification. As the slurry flows over the inclined screen surface, the perpendicular layout of the wires to the flow, allows for solids to be retained while liquid passes through the screen. Made from V-shape Wire screens, the Sieve Bend Screen can provide up to 50 percent more open area with a narrower wire profile.
| Norminal Diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen |
Greater strength, larger filter area Applied for medium depth wells or deep wells |
||||||||
Wires and Rods Information
Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :
The most common wire
The most common support rod
The Advantage of The Wedge Wire Filter
1.High strength and rigidity
2.A long service time
3.Customized shapes and slot
4.Low maintenance
5.Low cost.
The Usage accasions:
The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.
Some of the applications where profile wire screens can be found include, but not limited to the following:
Corn Wet Milling
Malting Processes
Winery Processes
Sugar Processes
Brewing Processes
The Details

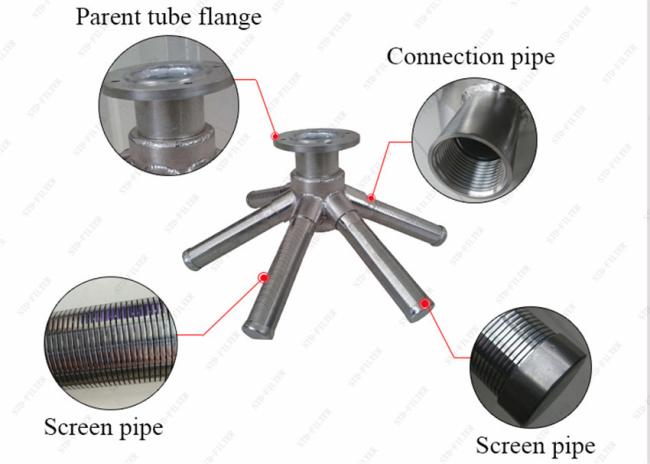

The others structure of Johnson Screen:
The Package:
The Delivery
