ID 200mm Slot 0.21mm Centrifuge Screen Basket Quality Crafted
AISI 304 And 316 Stainless Steel Silver Quality-Crafted And Fluidity Sieve Bend Screen Panel
Sieve Bend Screens, also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste Water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Sieve Bends screen are extremely effective for solid separation and/or dewatering. They are used extensively in a multitude of industries.
The Benifits of V-shape Wedge Slot Wire Filter
1. Passive filter.The anglular sieve bend screen accelerate ramp before effluent reaches the screen.
2.Better separation efficiency due to designs based on speed of fluid flow on the grids
3.Increased duration between cleaning phases,and easily to be cleaned.
4.Design specially optimized for individual industries including starch
|
Materials |
SS304, SS304L, SS316, SS316L, SS321, etc |
||||
|
Width Range |
According to request and the actual flange and strengthen bar |
||||
|
Normal ID |
176mm, 200mm, 230mm, 255mm. According to request |
||||
|
Normal Length |
600mm, 602mm, According to request |
||||
|
Normal Slot |
0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. |
||||
|
Slot Direction |
Radial Direction |
||||
|
Wedge Wire |
0.75x1.5 |
1x2 |
2x3 |
2*4 |
3*5 |
|
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
2x3 2x4 3x5 3x6
|
2x4 3x5 3x6 5x6 |
3x5 3x6 5x6
|
|
End Finishing |
Flange, , Metal Ring, etc |
||||
|
Note |
Customized According To Requirement |
||||
The Usage accasion:
The Wedge wire filter is useful for your tasks in any of the following areas:
Civil aggregate
CIL process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing.

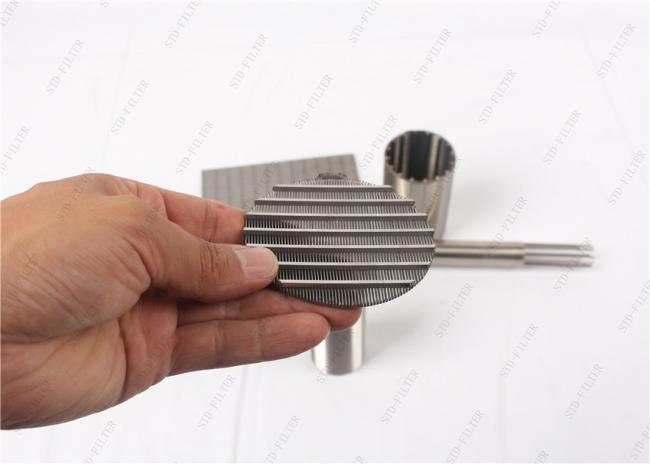

The details
Wires and Rods Information
The most common wire
The most common support rod
The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.
The Package and Delivery
The package is plastic in the wooden box
The delivery
