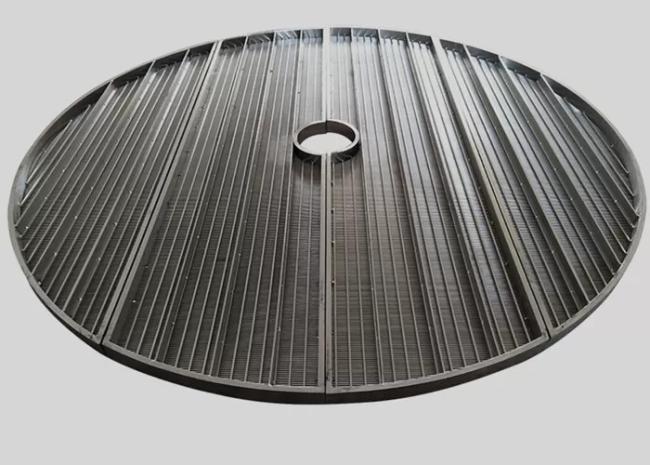

Customized 99% Wedge Wire False Bottom Screen For Wine Making
Safety Stainless Steel Customized Slot Segmented Wedge Wire False Bottom Screen For Brewery Lauter Tun
Introduction
Lauter tun is an important part within the drink making method, that is utilized to filtration system the crushed grains within the wort. The wedge wire false bottom part screen is the filtering material and helping material inside the lauter tun.
The false bottom is additionally known as a lauter tun screen or mash, STD Filter offers tailored solutions of diverse specs for global customers.
The Fales Bottom for brewery,distilleries, and wine makers,also referred to as one of the Wedge wire screen.It is particular apart satisfying this crucial element of the lauter tun, in which the lautering method happens. Made of business-regular stainless wedge wire — with personalized or common slot launching styles and display screen designs — our lautering screens provide strength, high quality and dependability in this particular crucial phase of the making, distilling, and winery method.
The wedge wire screen is recognized as the perfect building to allow the lautering approach to happen properly and proficiently. A wedge wire screen is made out of “V”-designed steel items, set across help beams at typical time periods — typically with availabilities of .028 ins or .030 ins. Though other slot opening up proportions can be used based on certain specifications.
The lauter tun wedge wire screen will allow the solid grain elements of the mash to behave as a filtering to individual the wort. Whilst the slot availabilities of the lauter False Bottom Screen don’t technically serve as a filter during this process, they make it possible for the very best filtration to occur by promoting the grain, which itself will become the filtering method — keeping back the littlest solids whilst permitting the wort to successfully pass. A high-high quality, small patience design is needed to help ensure that the procedure occurs correctly and uniformly so that the resulting product — whether drink, liquor or wine — will not be nasty or otherwise compromised by factors that shouldn’t be section of the wort.
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings |
The advantage of wedge wire false bottom screen to others filter:
1.Wedge wire offers a wide opened area to forbid to block.
2.High precision to make the brewing and beverage better
3.Less cost for maintance and operation
4.More efficient
5.customized,even segmented is allowed.
6.Resistance to corrosion and abrasion.
The most common wire
The most common support rod
The details:
The Package And the delivery
