180mesh Woven Wire Mesh

Name: 180mesh Wovenu00a0Wireu00a0Mesh
Brand: Hebei Standard Filter Equipment Co.,Ltd

Price Negotiable

Price: To be negotiated

MOQ: 1

Delivery Time: 5-8word days

Brand: STD

Product Description

Self Color Plain Woven Ultra Fine Copper Wire Mesh For Defense Insects

product description:

Copper wire offers excellent electrical and thermal conductivity. It is non-magnetic,anti-sparking and is resistant to atmospheric corrosion, salt air and brine.Copper applications are limited due to its low tensile strength, and poor resistance to abrasion and common acids.

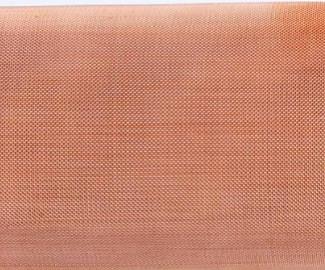

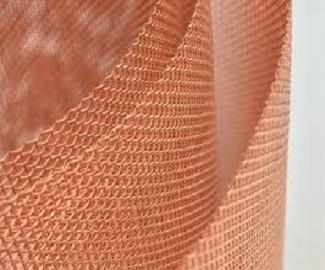

The Ultra fine Copper Woven mesh plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface.

Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

In addition, copper mesh owns special red-orange metallic luster and can be made to a great number of handicrafts or artworks.Copper wire cloth finds wide usage in traveling water screens,radio frequency interference shielding, sugar processing and marine applications. Inner packing:According to customers’ requirements Outer packing:According to customers’ requirements

Copper mesh and copper wire cloth specification
Mesh/inch	Wire diameter			Opening (mm)
Mesh/inch	SWG	mm	Inch	Opening (mm)
2	15	1.80	0.071	10.90
2	16	1.60	0.063	11.10
3	16	1.60	0.063	6.866
4	16	1.60	0.063	4.75
4	18	1.20	0.047	5.15
4	20	0.91	0.036	5.44
4	22	0.711	0.028	5.64
5	20	0.91	0.036	4.17
6	21	0.80	0.031	3.433
6	22	0.711	0.028	3.522
8	22	0.711	0.028	2.46
8	23	0.610	0.025	2.565
8	24	0.511	0.022	2.616
8	26	0.457	0.018	2.7
10	23	0.610	0.025	1.91
10	24	0.511	0.022	1.98
10	25	0.508	0.020	2.032
10	27	0.417	0.016	2.1
12	24	0.511	0.022	1.52
12	26	0.457	0.018	1.66
14	25	0.508	0.020	1.30
14	26	0.457	0.018	1.357
14	27	0.417	0.016	1.397
16	29	0.345	0.013	1.243
16	30	0.315	0.012	1.27
18	26	0.457	0.018	0.98
18	30	0.315	0.012	1.096
18	31	0.295	0.010	1.16
20	27	0.417	0.016	0.86
20	30	0.315	0.012	0.955
20	31	0.295	0.010	1.02
20	32	0.274	0.009	0.88
22	30	0.315	0.012	0.840
22	32	0.274	0.009	0.88
24	28	0.35	0.014	0.71
24	30	0.315	0.012	0.743
24	33	0.254	0.008	0.8
26	31	0.295	0.010	0.682
28	31	0.295	0.010	0.612
30	29	0.345	0.013	0.52
30	32	0.274	0.009	0.573
30	33	0.254	0.008	0.64
30	34	0.234	0.007	0.613
32	33	0.254	0.008	0.540
34	34	0.234	0.007	0.513
36	34	0.234	0.007	0.472
38	35	0.213	0.005	0.455
40	31	0.295	0.010	0.38
40	36	0.193	0.008	0.442
40	38	0.152	0.0060	0.485
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	32	0.229	0.009	0.28
50	34	0.234	0.007	0.32
50	37	0.173	0.0068	0.335
50	39	0.132	0.0052	0.378
60 × 50	36	0.193	0.0076	-
60 × 50	37	0.173	0.0068	-
60	33	0.191	0.0075	0.23
60	37	0.173	0.0068	0.250
60	40	0.122	0.0048	0.301
60	42	0.10	0.0040	0.32
70	39	0.132	0.0052	0.231
70	41	0.112	0.0044	0.251
80	35	0.213	0.005	0.18
80	36	0.193	0.008	0.22
80	40	0.122	0.0048	0.196
80	42	0.102	0.004	0.216
90	41	0.112	0.0044	0.170
90	43	0.091	0.0036	0.191
100	36	0.193	0.008	0.15
100	42	0.102	0.004	0.152
100	43	0.091	0.0036	0.164
100	46	0.061	0.0024	0.198
120 × 108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
120	45	0.071	0.0028	0.14
140	45	0.071	0.0028	0.11
140	46	0.061	0.0024	0.120
145	46	0.061	0.0024	0.1168
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	46	0.061	0.0024	0.081
180	47	0.051	0.002	0.090
200	47	0.051	0.002	0.076
