STD Filter Dia 2000mm Nickel Wire Mesh Demister For Gas And Liquid Separation

Nickel Wire Mesh Efficient Gas And Liquid Separation Customized Shape Demister

The introduction

Wire mesh demister is an efficient gas-liquid separation device widely used in chemical petroleum sulfuric acid pharmaceutical light industry metallurgy machinery construction aviation shipping environmental protection and other industries China’s introduction from abroad Ethylene synthetic ammonia. In chemical fiber and other production equipment a wire mesh demister is also used as a gas-liquid separation device.

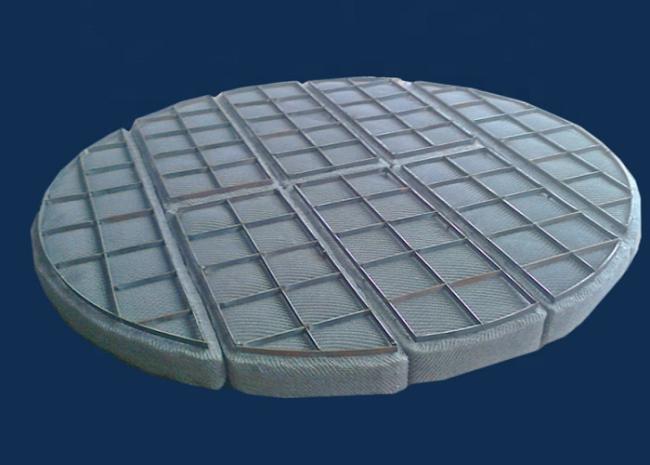

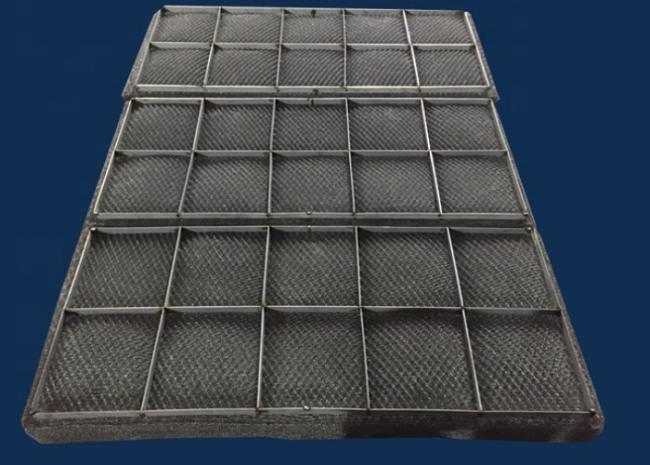

Details of nickel wire mesh demister

Diameter: DN100mm-4000mm
Composition: It is composed of two parts a gas-liquid filter mat
(composed of several pieces of mesh pieces)
and a supporting piece. The mesh piece is composed of several layers
of corrugated gas-liquid filter screens grids and spacers. to make

Working principle of nickel wire mesh demister:

When the misty gas rises through the screen at a certain speed, the mist collides with the screen filament and adheres to the surface of the filament due to the inertia of the rising mist. The diffusion of mist on the surface of the filament and the gravity sedimentation of the mist cause the droplets to form larger droplets along the filament to the junction of the two filaments. The wettability of the filaments, the surface tension of the liquid, and the capillary action of the filaments make the droplets larger and larger until the collected droplets are so large that their own generated gravity exceeds the combined force of the gas’s rising force and the liquid surface tension. At this point, the droplets fall off the filament.

The Advantage:

Made from Nickel, corrosion-resistant and lightweight.
Cross wires are strong enough to hold heavy things.
Resistance to acid and alkali.

Excellent electrical conductivity.

Light weight and high strength.

Customized size to meet your needs.
