Stainless Steel 304 Wedge Wire Strainer
Stainless Steel 304 316 Corrosion Resistant Customized Size And Shapes River Intake Screen
Materials:
We,STD Filter,offer many various options,such as T-intaker,half intaker, drum screen filter and panels.All of them are stainless steel 304 and 316or as your required.We produce multiple sizes and configuration,including half intaker for shallow water condition.
As we know,the water intake screen is the first safeguard of clean waters. The screen's slot decides the bolck or not of the following pipe or tube and devices.So we hope the first guard is more thinner of the screen.Then the wedge wire or Johnson wire water intake can meet your needs.Also, it is not easy to be blocked.So don't worry it about taking your time to maintain it.So it is perfect for the water system.
| Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen |
Greater strength, larger filter area Applied for medium depth wells or deep wells |
||||||||
Product include:
Flat Panels

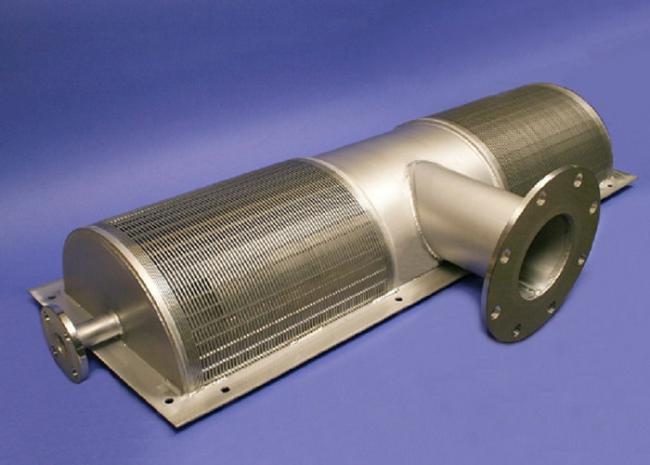

Half-barrel intaker

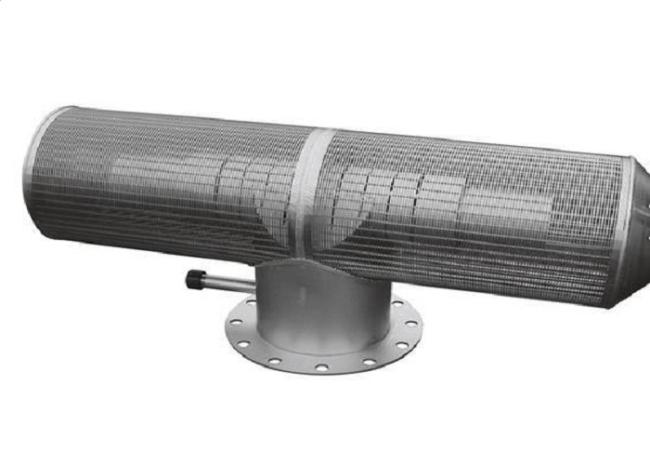

T-intaker screen/strainer
Drum screen/strainer
Advantage
Passive intake,no moving parts
Reducing operation cost
Minimum clogging to reduce the pump power
Maximum water flow
Muitiple types accomendate deep to shallow depths
Resistance to corrosion and abrasion
Other Applications:
1.Environmental protection
2.water/liquid filtration
3.air/liquid filtration
4.Drinking water pre-filter
5.mining
Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
The delivery is door to door,or we can negotiate.
