Ss 316 And 304 Wedge Wire Strainer Trommels Flanges And Stiffeners Anti Rust Corrosion
Anti-Rust And Corrosion SS 316 And 304 Wedge Wire Trommels Flanges And Stiffeners

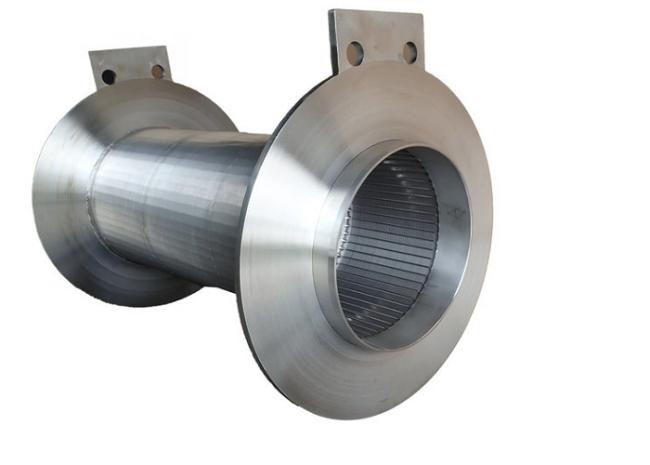

The wedge wire trommels flanges and stiffeners is a special industrial filter, also a kind of wedge wire screen. It includs one or two flanges on the heads and the stiffeners inside for support. The flange is suitable for installation on the machines or the out shell. It may be different as the accessory, the thickness and the hole of the installation bolts. The stiffeners is welded inside to make the trommels bear more pressure or hitting. So it will have a longer life and less maintance.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, etc | ||||
| OD Range | According to request and the actual flange and strengthen bar | ||||
| Normal ID | 176mm, 200mm, 230mm, 255mm. According to request | ||||
| Normal Length | 600mm, 602mm, According to request | ||||
| Normal Slot | 0.2mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. | ||||
| Slot Direction | Radial Direction | ||||
| Wedge Wire | 0.75x1.5 | 1x2 | 2x3 | 2*4 | 3*5 |
| Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
2x3 2x4 3x5 3x6
|
2x4 3x5 3x6 5x6 |
3x5 3x6 5x6
|
| End Finishing | Flange, , Metal Ring, etc | ||||
| Note | Customized According To Requirement | ||||
The Benifits of V-shape Wedge Wire Filter
1. Continuous and high rate open slot :work more efficient
2.V-shape profile:More hard-wearing and high abrasion to bear the impact force
3.Precision slot:make your work more uniform
4.Wide side is surface:not easy to be block.
5.Long service time:Save your time and money.
The diagram demonstrates why welded wedge cable factors are rigid and robust and thereby keeps extremely dependable port launching on a regular basis.
The details
The Usage accasion:
The Wedge wire filter is useful for your tasks in any of the following areas:
Civil aggregate
CIL process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing.
