Wedge screen filter structure is firm and corrosion resistant.
Wedge screen filter Introduction:
Wedge wire screen machine is composed of working section and support section. It is produced on a car machine. The supporting profile is placed in an appropriate position of the machine tool, and the supporting profile is welded to the surface profile when the surface profile is helically cut. 250 micron wedge mesh.
| No. | (mm)TYPE | OD (mm) | ID(mm) | SuppoTt wiTe NumbeT | Filter diTection |
| 1 | STD25.4 | 25.4 | 18.6 | 12 | FOTI |
| 2 | STD 33 | 33 | 24 | 8 | FOTI |
| 3 | STD 37 | 37 | 28 | 8 | FOTI |
| 4 | STD 40 | 40 | 31 | 8/10 | FOTI/FITO |
| 5 | STD 45 | 45 | 36 | 10/12 | FOTI/FITO |
| 6 | STD 48 | 48 | 38 | 12 | FOTI/FITO |
| 7 | STD 60 | 60 | 51 | 12 | FOTI/FITO |
| 8 | STD 70 | 70 | 61 | 12/18 | FOTI/FITO |
| 9 | STD 85 | 85 | 76 | 18 | FOTI/FITO |
| 10 | STD 110 | 110 | 101 | 24 | FOTI/FITO |
| 11 | STD120 | 120 | 111 | 24 | FOTI/FITO |
Features:
Good wear resistance and long service life.
Small maintenance workload, wedge mesh filter is not easy to damage, long service life.
Continuous groove uniform structure, stable welding quality, high open area, long service life, strength, steel, bearing capacity, can make all kinds of steel mesh filter.
The products are made of high quality stainless steel (302, 304, 304L, 316, 316L, etc.). Materials and welding using advanced processing technology, strict technology.
It has the advantages of anti-slip, high hardness, good elasticity, good compressibility, vibration resistance, corrosion resistance, not easy to plug, compact structure, not affected by temperature, long service life, low comprehensive cost.
The gap size is strictly uniform, the opening rate is high, the screening and filtering technology is good, the gap size can be arbitrarily selected, and can be processed into a variety of shapes of the filter.
The Applications:
Wedge screen filters are ideal for filtration, separation and dehydration. It is widely used in pharmaceutical industry, high temperature petrochemical industry, corrosive liquid filtration, a variety of hydraulic oil machinery industry, lubricating oil filtration, anti-riot device in the buzzer and other industries.
In addition, it is also used in polyester, petroleum, food and beverage, chemical fiber, water treatment, gas filtration and other industries.
Application:

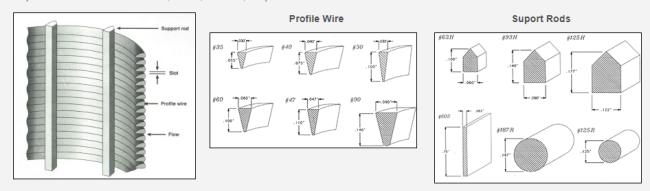

The details of profiles:
