Stainless Steel Wedge Arc Screen Curved Web Plate For Aquaculture
Stainless Steel Wedge Arc Screen Curved Web Plate For Aquaculture
Introduction:
The wedge v-type arc screen curved sieve plate is ideal for glue application and dehydration applications, removing solids from the liquid, or in the case of solid / solid separation of dr feed.
Type Wedge v curved screening plates can be made of various widths, arc length, aperture or wedge filament to accommodate flow and material separation, although most applications require static screening, "cross flow", "flow" and "vibrating" screening bends can also be made.
| Nominal diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen |
Greater strength, larger filter area Applied for medium depth wells or deep wells |
||||||||
Characteristics of a wedge-curved screen plate used for aquaculture:
- Work the gravity of water without energy
- High water treatment capacity
- Not easy to block, easy to clean up
- Stainless steel material, high mechanical strength, long service life.
Use of wedge arc mesh curved mesh panels for aquaculture:
Bend screens are commonly used in food processing and wet corn mills.During wet grinding, CP screen precision made 120 Degree DSM.The screen, like the ordinary curved screen, is simple in shape, but opens very thin, generally 75 um and 100 um

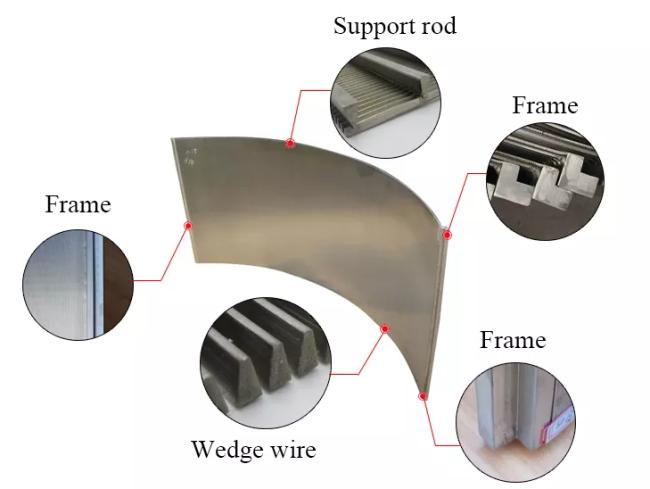

Specification materials of wedge-shaped v-type curved screen plate for aquaculture:
The ss304, SS304L, SS316, SS316L, SS321, duplex, Haralloy et al
Length range: 6,000 m m
Width range: 6,000 m m
Slot range: 20 micron ~ 3,000 microns (tolerance: + -5 micron)
Wedge wire: 0.5x1,50.75x1.51x21.5x2.52x32x43x5
Support bar: 1.5x2.52x31.5x2.52x31.5*2.52x32x33 * 53x53x54 * 65 * 8
Angle 90,120,140,150,160, etc
Arc height10mm 15 mm 20 mm.At 50mm, or depending on the size of the screen pane, select an unframed or "L" box, a normal box, or a 5 * 10mm box upon request.
The Advantages:
1.No need power to run it.
2.Maximazing work face.
3.Not easily to be blocked.
4.Less cost to maintance and run.
5.Environmental friendly.
Application:
Packages
The delivery
