Stainless Steel Filter Screen 99% Wedge Wire Strainer Water Filter Custom
Stainless Steel 304 And 316 High Rigidity Wedge Wire Strainer For Water/Solid Or Air/Solid Separation
The Wedge wire strainer is known as wedge wire screen,wedge wire filter,etc.It includes the wedge wire and support rods,The wedge wire and the support rods are welded together.The structure of the strainer is four kind:

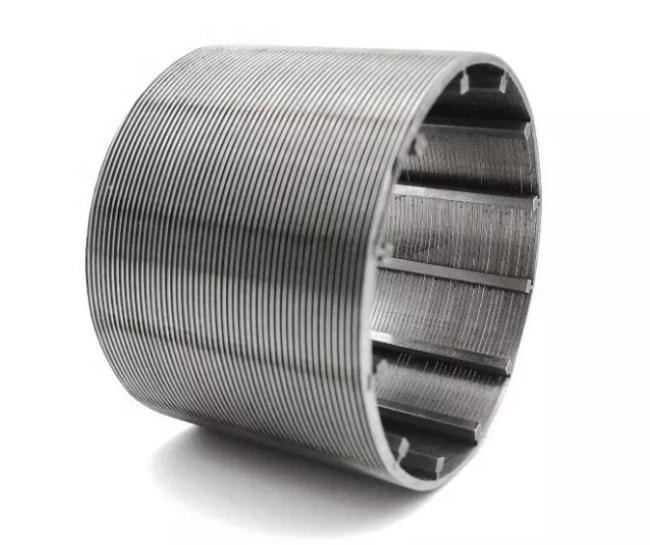

1.Wedge wire is one piece and ouside,rods are some and inside
2.Wedge wire is one piece and inside,rods are some and outside.
3.Wedge wires are some and outside,the rod is one piece an inside.
4Wedge wires are some and inside,the rod is one piece an outside.
The rod has two kind profiles:Wedge and circular.
| SIZE (INCH) |
O.D (MM) |
SLOT (INCH) |
LENGTH (M) |
COLLAPSE STRENGTH (PSI) |
TENSILE WEIGHT (TON) |
WRAP(thick*deep) (MM) |
RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
The Benifits of V-shape Wedge Wire Filter
- Custom design and engineering
- Low maintenance
- Low cost
- Many construction schemes
The Wedge wire filter is useful for your tasks in any of the following areas:
- Filtering
- Grading
- Separating
- Media retention
- Dewatering
- Classifying
- Straining
- Drying
- Water intake
- Fish diversion
- Collection
Wires and Rods Information
The most common wire
The most common support rod
The Package:Wooden box
The delivery
