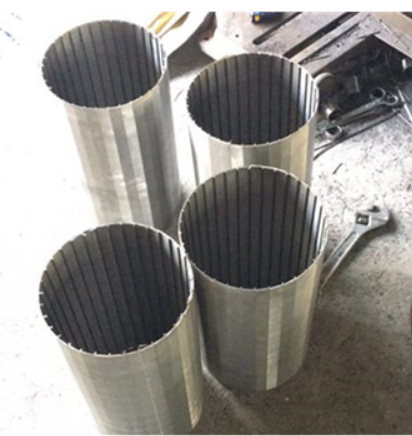

Cylindrical Metal Sintering Wedge Wire Strainer Filtration To Purify Sieve Residue
Metal sintering filtration to purify sieve residue Wedge Wire Strainer
Materials:
Wedge Wire Screen is a sieve made from looped wires formed into a deep wedge-shaped section. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.Wedge wire filter tube is derivatives include:wedge-shaped water cap,wedge-shaped wire cloth water device,wedge-shaped wire row device,wedge-shaped wire resin trap,etc.
|
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
Product details
(1)Material details,Selection of excellent material wear-resistant, anti-aging, durable, easy to transport
(2)Spot supply,We are a real production factory with enough inventory to supply, if you need batch customization, please call us
(3)Process is rigorous,The process is rigorous, every step of the product is made according to the standard, professional quality inspection for you
Function:
(1)Since this screen is continuously welded on a special equipment, the gap between the stainless steel trapezoidal wires can be adjusted. In this way, the needs of different users can be met without increasing the cost.
(2)CORROSION RESISTANCEFor neutral water, acidic water, alkaline water, regenerant caustic soda, hydrochloric acid, sulfuric acid, salt, etc., as long as these materials are reasonably selected, various types of filtration equipment can be operated economically and safely.
Other Applications:
(1)Deinking stock washing
(2)intake structures of hydro plant
(3)pretreatment processing
(4)fiber removal in starch industry for dewatering
(5)separating different grades of coal
Package and Delivery:
(1)paper tube support inside , and waterproof paper , and wooden box outside .
(2)Any package can be customized as per your request
The delivery is door to door,or we can negotiate.
