Corrosion Resistance Welded Wedge Wire Screen High Temperature Silver
Corrosion resistance high temperature silver wedge wire filter
The Introduction

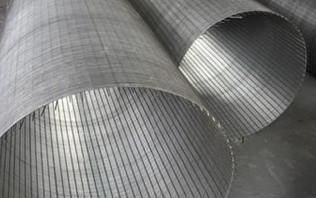

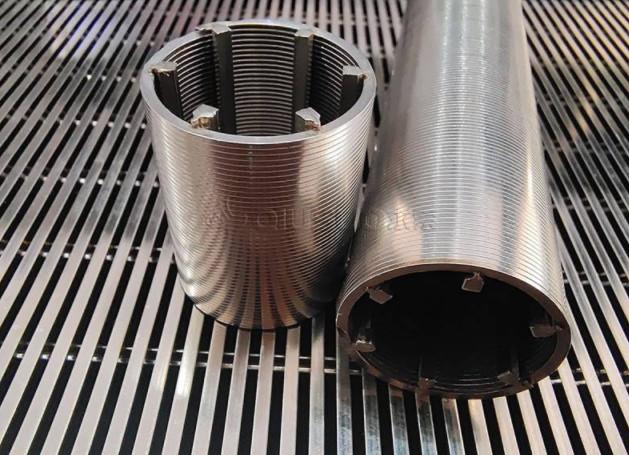

Wedge-Wire products are manufactured by an exclusive process of continuously welding an outer profile wire circumferentially in a helix pattern to a series of longitudinal support rods. Alloys available are Stainless Steels, Monel, Titanium, Alloy C-276.
Manufactured specifically for your needs in a variety of apertures and wire profiles to suit particular site requirements. All Materials and Sizes are according to your designs, drawings, or samples. OEM & Custom Manufacturing with No Risk.
|
Name |
wedge wire screen |
|
Material |
stainless steel(304,316) |
|
Wedge wire |
Width(mm): 1.5,1.8,2.3,3.0,3.3,3.7,1.0,4.5 |
|
Support rod |
Width(mm): 1.5,2.0,2.3,2.7,3.0,3.3,3.7,4.0,4.5 |
|
Thickness |
usually 1mm,1.2mm,1.5mm,2.0mm etc |
|
Length |
300mm,500mm customized |
|
Width |
30mm,35mm,50mm,60mm,customized |
|
Openging rate |
45%,60%,85% etc customized |
|
SurfaceTreatm |
Electric galvanized, Hot dipped galvanized, oxidation treatment etc |
|
Usage |
screening,decoration, sifting, filtration, drying, cooling, cleaning |
|
Delivery Detail |
7-15 days after receiving the 30% deposit or as required |
Wires and Rods Information
Welded wedge wire development entails two elements.
The profile wire and also the help rod are fused into one at every intersection of the account cable as well as the support rod.
Standard highlights of Welded wedge wire factors / goods :
The most common wire
The most common support rod
The Advantage of The Wedge Wire Strainer:
-
Provide high strength and excellent durability
-
Longer lasting than over screens or filter socks
-
Relatively small resistance for higher flow rate
-
Excellent corrosion resistance
-
Finer straining capabilities without use of a filter or mesh overlay
-
Ideal for highly viscous applications
-
Efficient design means little pressure drop as liquids pass through
-
Minimal clogging
-
Precise slot sizes and consistent spacing
The Features:
- Wedge strong mechanical strength arc filter gap, improve scouring resistance and service life, 15, 20, 25 micron different specifications of the filter element for choice.
- Wedge design, increase recoil energy more than 7 times instantaneous pressure difference up to more than 50mpa 316L material suitable for all kinds of fluids.
- Easy to clean, strong regeneration ability, strong mechanical strength, especially suitable for heavy oil, high viscosity, high temperature and high pressure occasions
The Details
1.Easy leakage, wear resistance, corrosion resistance.
2.The mesh cross section is a trapezoid, narrow width of the gap,have a wire made of cold rolled stainless steel, this wire is support rods.
3.The screen is uniform, the welding is stable, high hole rate, long service life, high strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.
The Usage accasions:
The features of the Wedge Wire screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.
The Package:
Step 1; bubble packing
Step 2; wood support wrapped the wedge wire screens
Step 3; wire reinforce inside of the container
The Delivery
