Pure Titanium Wire Mesh Screen Woven 40 Micron
Pure Titanium Woven Wire Mesh Screen 40 Micron Wire Mesh

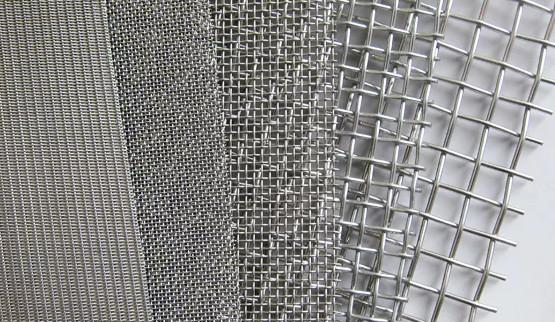

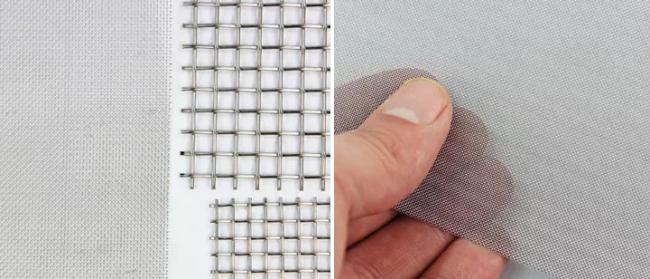

Titanium Mesh Introduction:
Titanium mesh titanium wire than the general plain weave wire diameter is a little thicker, woven out of the network strength will be greater, suitable for petroleum, chemical, chemical fiber, aerospace and other industries, has good acid resistance, alkali resistance, high temperature resistance, tensile strength and wear resistance and other properties.
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 4 × 4 | 0.032 | 0.218 | 76 |
| 4 × 4 | 0.035 | 0.215 | 74 |
| 6 × 6 | 0.032 | 0.135 | 65.6 |
| 7 × 7 | 0.025 | 0.118 | 68.2 |
| 8 × 8 | 0.032 | 0.093 | 55.4 |
| 9 × 9 | 0.032 | 0.079 | 50.6 |
| 10 × 10 | 0.035 | 0.065 | 42.3 |
| 10 × 10 | 0.03 | 0.07 | 49 |
| 10 × 10 | 0.025 | 0.075 | 56.3 |
| 12 × 12 | 0.011 | 0.0723 | 75.3 |
| 14 × 14 | 0.016 | 0.055 | 60.2 |
| 16 × 16 | 0.006 | 0.0565 | 81.7 |
| 18 × 18 | 0.01 | 0.046 | 67.4 |
| 18 × 18 | 0.011 | 0.0445 | 64.4 |
| 18 × 18 | 0.016 | 0.04 | 50.8 |
| 20 × 20 | 0.003 | 0.047 | 88.4 |
| 20 × 20 | 0.02 | 0.03 | 36 |
Titanium Mesh Feature
• Shipbuilding.
• Military industry
• Chemical industry.
• Mechanical industry.
• Petroleum.
• Pharmaceutics
• Medicine.
• Satellite and aerospace.
• Environmental industry.
• Electroplating industry.
• Battery industry.
• Surgery.
Titanium Mesh Applications:
• Filtration. Chemical filter, mechanical filter, oil filter.
• Electromagnetic shielding.
• Desalination.
• Skull repair and reconstruction.
1.Inside packing: a plastic bag or woven belt
2.Outside packing: carton box and wooden box.
3.We also can do packing according customer requirement.
