Resist Pressure Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin
Stainless Steel Sand Filter Wedge Wire Nozzle Screen For Tap Water Resin

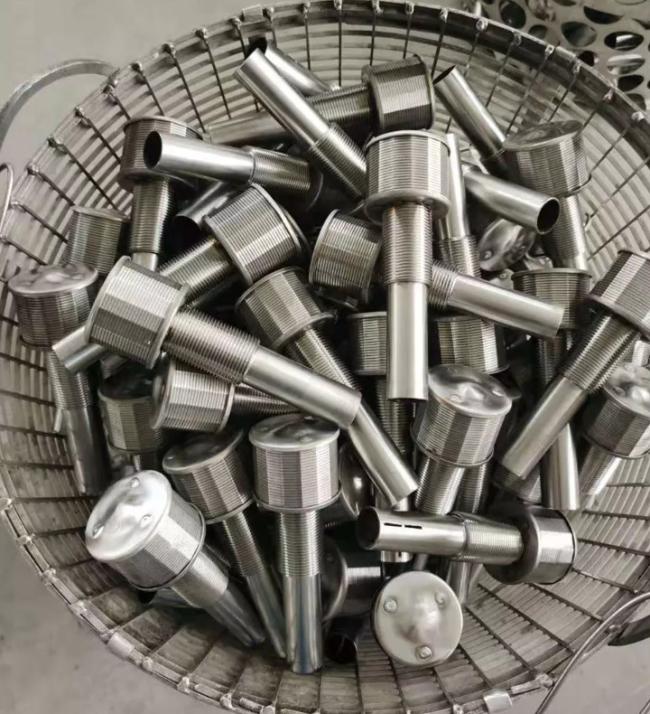

Sand filter wedge wire nozzle for water treatment is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
| Type |
Slot |
Dimension |
Flow Rating |
||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
|
|
|
|
|
|
M,NPT, G, PT(BSPT),Z,BSP, request |
SS Gasket, |
|
| STD-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| STD-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| STD-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| STD-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| STD-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note |
* All the above size are the normal size. Customized size is possible. |
||||||
Feature :
Low-carbon, galvanized or stainless steel construction.
More open area and high precise openings.
Maximum design flexibility.
More stronger and durable.
High mechanical strength.
Resist pressure, high temperature, aging, corrosion.
Easier installation and long-term operating.
Low operation cost and maintenance cost.
Easy to clean for reuse.
Application:
Wedge wire filter element is widely used for deep well pump, dive water pump. Also used for waste water treatment, water softening treatment, oil industry, food process, mineral process, and chemical and alkali filtration.
The Package:
