Perforated Round Metal Filter Porous Stainless Steel Discs High Temperature Resistance
High Temperature Resistance Perforated Round Stainless Steel Metal Porous Filter Disc
Description

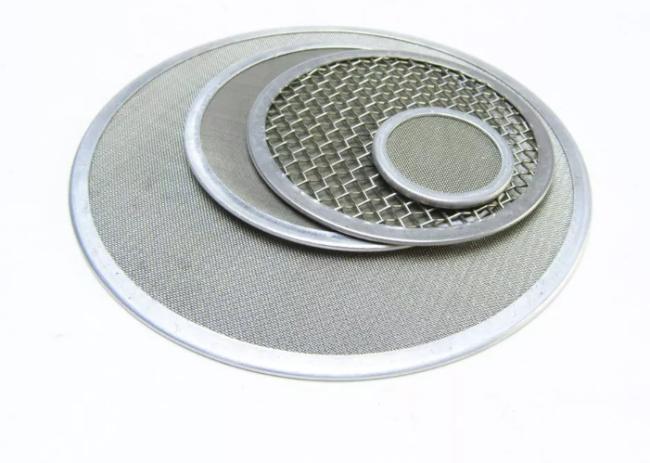

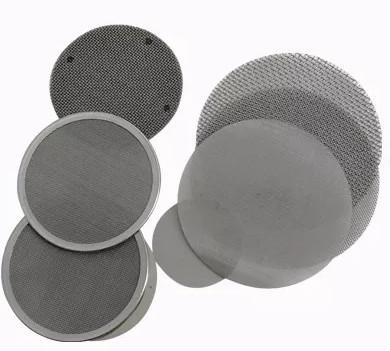

The filter mesh is made of stainless steel mesh or wire mesh by machine stamping. It has round, rectangular, square, oval, ring and other shapes. The main material of the black wire mesh is iron wire, which has three kinds of weaving methods: plain weave,mat weave, twill herringbone weave.
|
Filteration Class
|
Filtering Rating (um) |
Pore Size Max. (um) |
Permeability 10-12m² |
Breathability m3/h.m2.KPa |
Thickness (mm) |
Compression Strength MPa/ cm² |
| S9 | 0.2 | 2.5 | 1 | 3 | 3.0 | |
| S8 | 0.5 | 4 | 3 | 3 | 3.0 | |
| S7 | 1.0 | 6 | 5 | 3 | 3.0 | |
| S6 | 2.5 | 10 | 0.09 | 10 | 3 | 3.0 |
| S5 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | |
| S4 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
| S3 | 30 | 60 | 3.82 | 350 | 3 | 3.0 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | |
| S2 | 40 | 100 | 9.43 | 700 | 3 | 3.0 |
| S1 | 65 | 160 | 15.1 | 1000 | 3 | 3.0 |
The Feature
High temperature resistance, corrosion resistance, burn resistance, good filtering effect, etc.
The application:
Filter mesh is mainly used for distillation in rubber, plastic particles, plastics industry, grain and oil screening, petroleum, chemical fiber, electric power, oil refining, chemical industry, light industry, sewage, beverage, medicine, metallurgy, machinery, shipbuilding, automobile and tractor industries , Absorption, evaporation, filtration equipment, etc.
