China ftth Fujikura 28s Splicing Machine Active V groove Alignment for sale

ftth Fujikura 28s Splicing Machine Active V groove Alignment

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 5-10 working days

Brand: Fujikura

Product Description

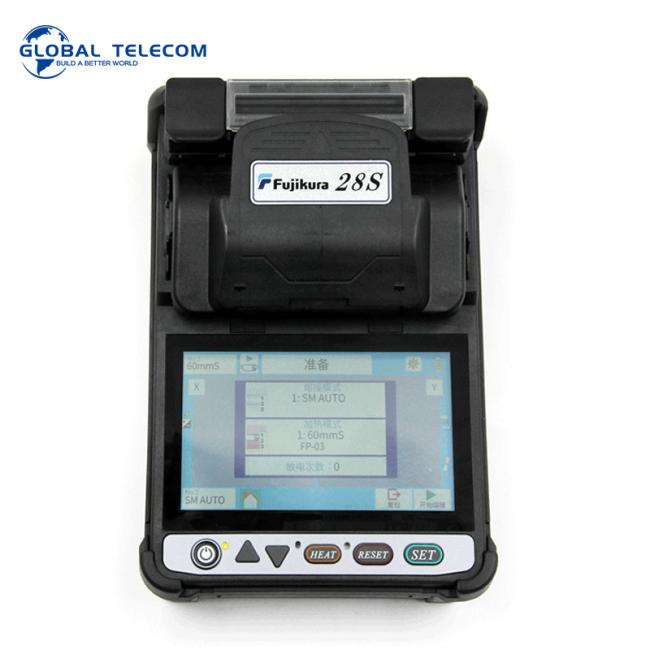

ftth fiber optic fusion splicer original japan fujikura FSM-28S FSM-41S fusion splicer

Fujikur has been the pioneer in fusion splicer technology since 1978. Through our extensive knowledge in optical technology, we have been continuously challenging ourselves in creating splicers that are well known for their ruggedness and reliability worldwide. Working closely together with Fujikura’s strong team of technical experts, our worldwide network of distributors are committed to give the best technical support & service to our customers. Please try to peek at the construction site of near your home. You might find a Yellow BOX, which is one of the unique features of the Fujikura Splicers.

Features
Active V-groove Alignment
Fast Splicing time :6 Seconds
Touch panel with east operation

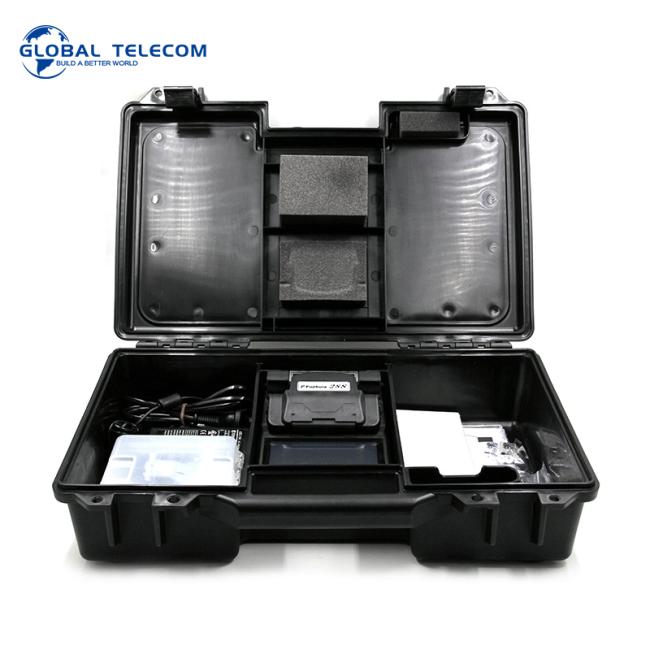

Simple lightweight carrying case for good mobility

**Specifications**
Applicable fiber	Single / SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Cladding dia. / Sheath dia.	125 um / Up to 3mm with sheath clamp
Cleave length	5mm to 16mm
Splice mode / heating mode	Total 100 splice modes / 30 heating modes
Typical splice loss*s	0.03dB (SM), 0.01dB(MM), 0.05dB(DS) and 0.05dB(NZDS)
Return loss	>60dB
Typical splice time	6sec SM FAST, 9sec SM AUTO
Typical tube heating time	25sec FP-03, coating dia.250um
Splice result storage	Last 10,000 splices
Viewing methods / magnification	2 axis 2CMOS camera with 5.0”color LCD. 132X magnification.200X magnification after splicing
Tension test	1.96 to 2.25N
Applicable protection sleeve	60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge	Typical 200 cycles with BTR-11*2
Electrode life	Typical 5000 splices
Size / weight	131W x 201Dx 79H mm/ 1300g (including battery)
Operating condition	Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Resistance feature*4	Shock resistance : 76cm (30inch) bottom surface drop Dust resistance : Exposure to dust ( 0.1 to 500μm dia. Alumina Silicate) ,IP5X Rain resistance : H=10mm/hr for 10min ,IPX2
Other features	PC software upgrade / data management
Terminals	USB 2.0 (Mini-B type) connector for PC communication.
