4 Core Outdoor Fiber Optic Cable Air Aerial G652d Fiber Cable 24 core
outdoor air aerial fiber optic cable 4 core optic fiber cable 24 core GYTS SM G652D cable fiber optic
| Technical Parameters |
Optical Characteristics:
| Fiber Type | G.652D | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation (+20X) | @850nm | ≤3.0 dB/km | ≤3.3 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | <0.40dB/km | |||
| @1550nm | ≤0.22 dB/km | <0.23dB/km | |||
| Bandwidth | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength cc | ≤1260nm | <1450 nm | |||
Cable Specification:
Item Name:Fiber optical cable GYTS
Total Fiber Count:2-288
Bend Radius(Static/Dynamic):20 x External Diameter of cable
Working Life:More than 25 years
Application:Backbones and Access,Installed in ducts,Underground conduits.

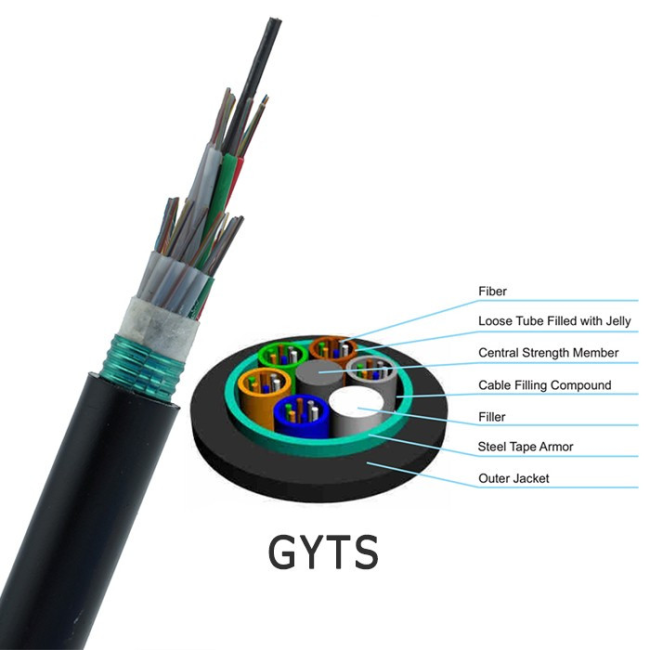

Structure:
GYTS fiber cable consists of :
1.Fiber

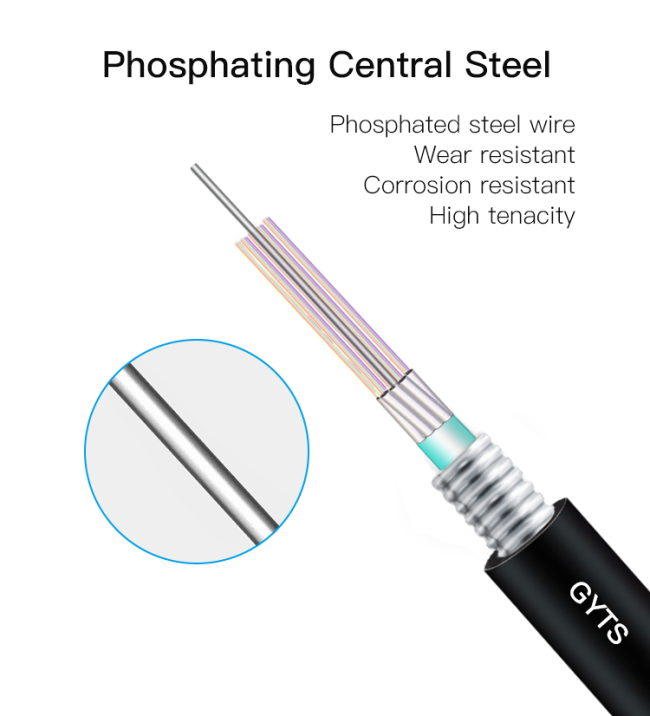

2.Steel wire strength member
3.Cable filler compound
4.Fillers
5.Steel Tape Armor
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
| Related Package |

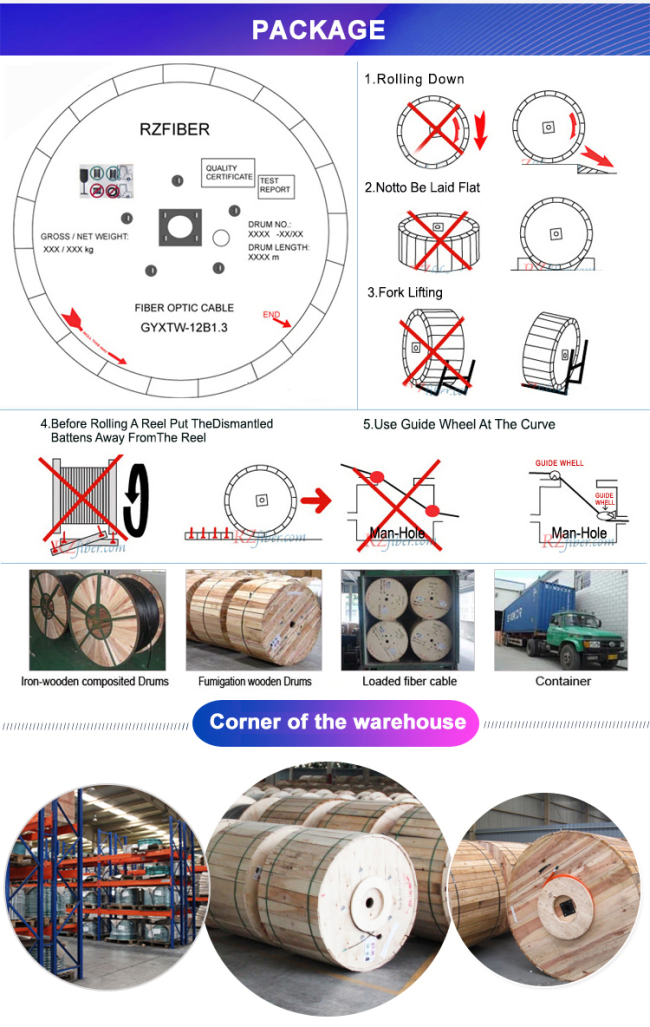

Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
