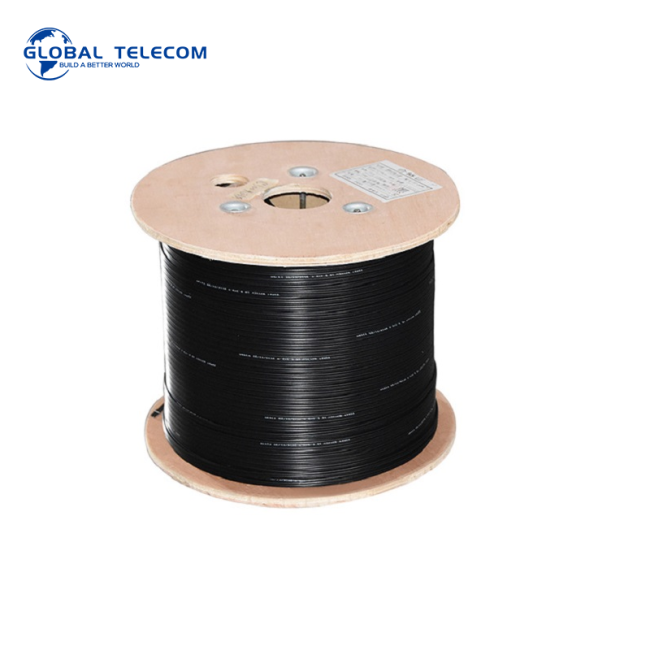

FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

Description:

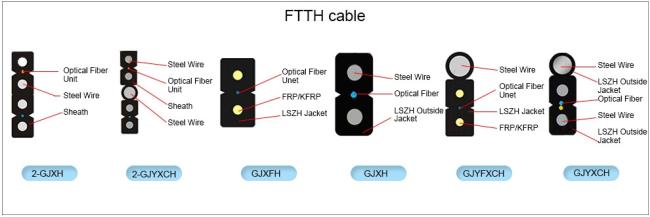

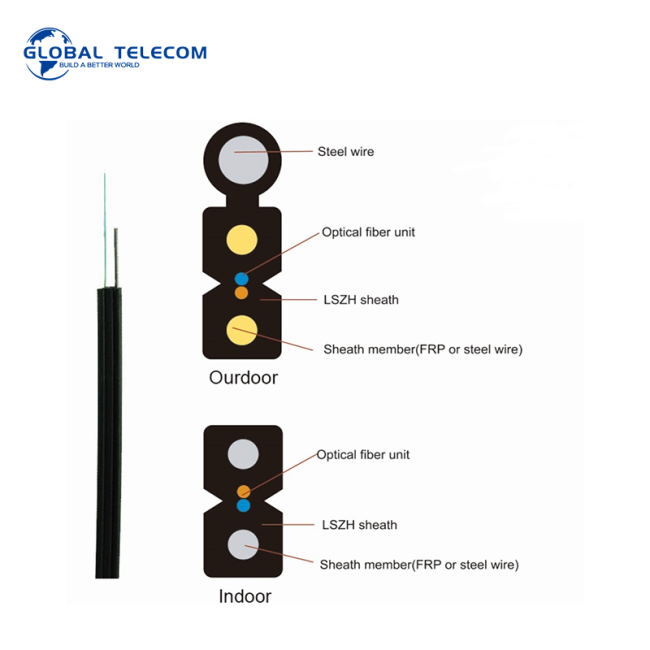

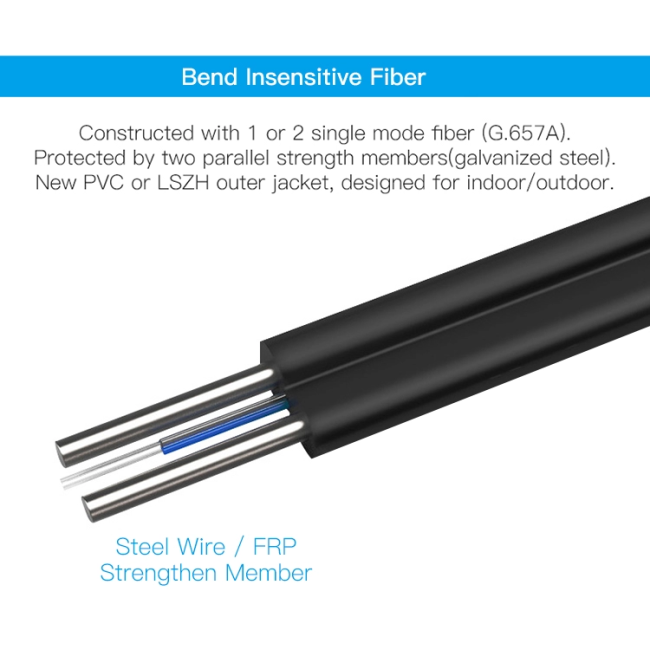

• The optical fiber unit is positioned in the center.

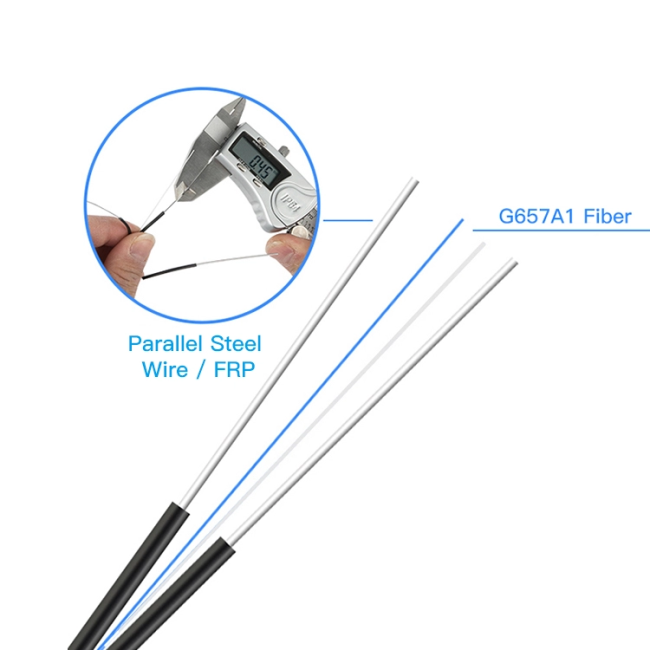

• Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.

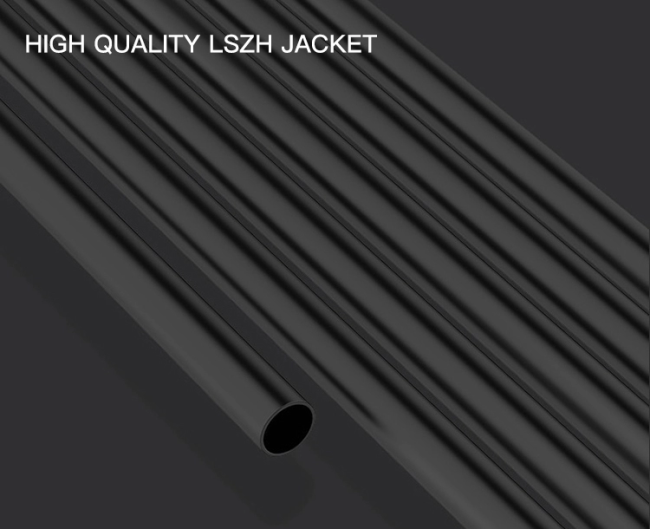

• Then the cable is completed with a black or white color LSZH sheath.

Features:

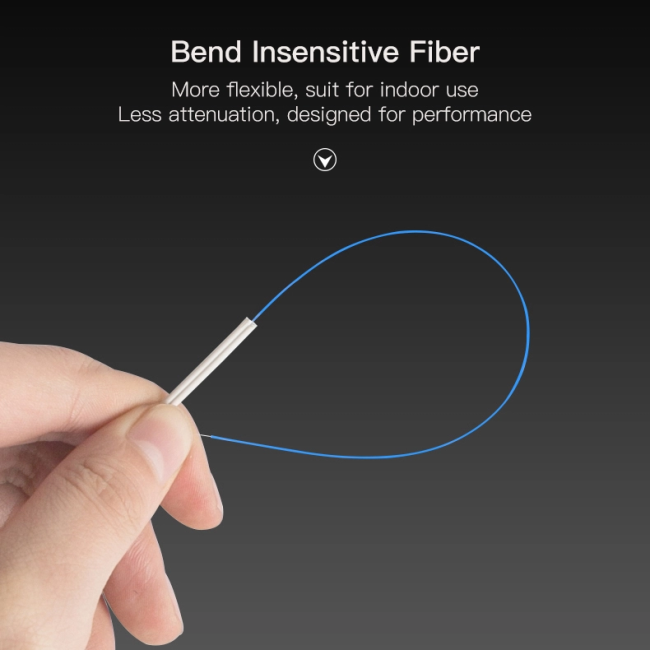

• Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
• Two parallel strength members ensure good performance of crush resistance to protect the fiber
• Simple structure, light weight and high practicability
• Novel flute design, easily strip and splice, simplify the installation and maintenance
• Low smoke, zero halogen and flame retardant sheath
• Simple structure, light weight and high practicability

Application:

• Used in indoor cabling, especially used for FTTH
• Used as access building cable

Fiber Characteristic:

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
