FST-18S splicing machine is FTTx active cladding alignment fusin splicer;Industiral quard core CPU,high quality and low loss; 5'' high resolution color LCD touch screen,400X magnification,visible clearly with bare eyes;Packed with detachable 5200mAh battery,more than 250 times of splicing and heating;3 high-power white LEDs and illuminated keypads simplifies your work at night;German CNC technique and integrated fiber-adjust frame, which make performance much stable;Built -in Japanese components and Korean chipset.Detachable multifunction fixture,suitable for various fiber types;Dust-proof,water-proof,high temperature resistance,adapting to various altitude and harsh environment.

01,The color of the machine is black, golden and red. It is specially used for short distance work and maintenance of optical fibers from home.

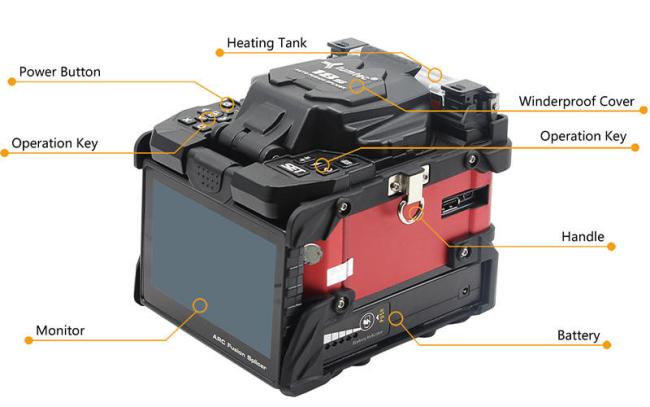

02,Welding machine after adjustment and calibration precision, try to avoid the impact and vibration of strong, long distance transportation please carry the box to use special.
03,With a handle, easy to carry,the display screen can reach the optimum angle for easy operation.
04,Large capacity batteries up to 5200 mAh , ultra-Mini USB 2.0 port.
05,With three high-power LED white lights.

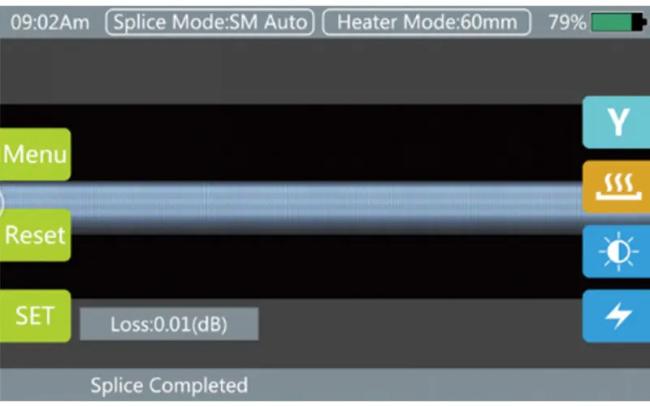

06,5-inch 800*480 color high resolution capacitive touch screen, double-click can achieve 400 times the focus amplification effect.



Operating Methods	Button/Touch Screen
Display	90° bi-directional view,4.3" high resolution display with touch screen
Heating tank	Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes
Typical Splice Loss	SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard)
Appicable Fibers	SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Heating times	typical above 180 times(splicing+heating)
Fiber View & Magnification	X,Y,XY,X/Y:380×Magnification
Automatic Calibration	Automatic ARC calibration by air pressure and temperature
Electrode Life	3000 ARCS, can be extended by using an electrode grinder
Operating Condition	0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
Storage Condition	0~95% relative humidity, -40~80℃; battery storage: -20~30℃

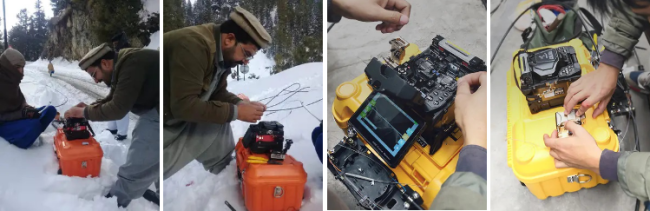

1. The actual feedback from Pakistani users: the FST-18S fusion splicer has been in use for more than a year, worked in harsh outdoor environment mostly, still in good condition;
2. The actual feedback from the FoShan construction team: the splicing machine is well equipped, stable and effective;
