FST-83A Optical Fiber Fusion Splicer Digital Core Alignment Fiber Splicing Equipment
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Tumtec
Product Description

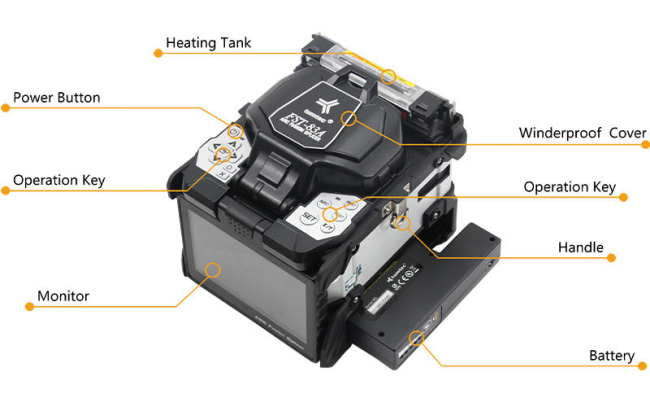

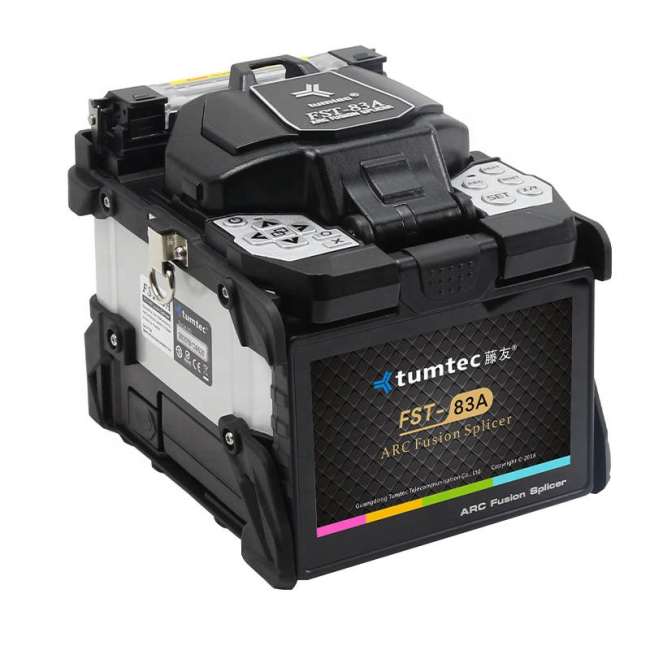

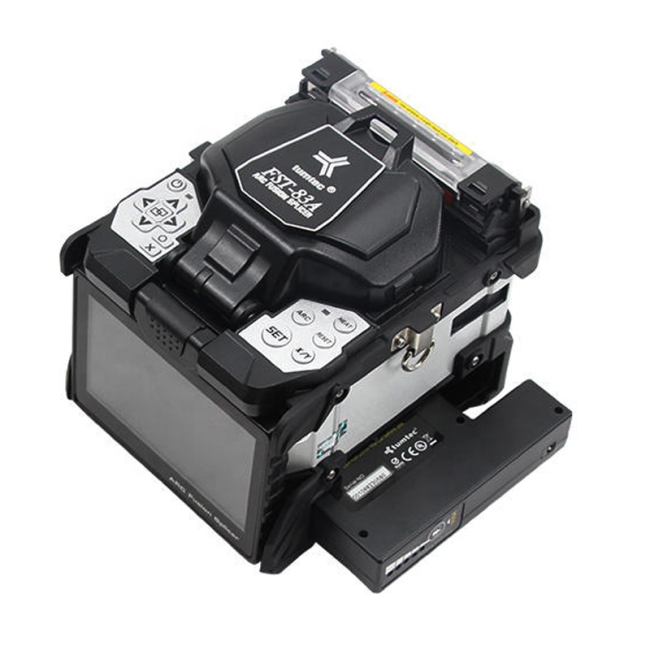

Digital Core Alignment Tumtec Fusion Splicer FST-83A
Overall introduction for FST-83A:
1,FTTx Active V-groove Fusion Splicer;
2,DACAS-Digital Analysis Core Alignment Systems;
3,5 inch high resolution color LCD touch screen,500X magnification ,visible clealy with eyes;
4,Packed with detachable 5200mAh battery,more than 280 times of splicing and heating;
5,Auto-splicing mode,using friendly design;
6,German CNC technique and intergrated fiber-adjust frame,which make performance much stable;
7,3 high-power white LEDs and illuminated keypads simplifies your work at nightt;
8,Detachable multifunction fixture,suitable for various fiber types;
9,Dust-proof,water-proof,high temperature resistance,adapting to various altitude and harsh environment ;
10,Optical imaging system ranks No.1 in the world;Built-in Janpanese components and Korean chipset;
Overall introduction for FST-83A:
1,FTTx Active V-groove Fusion Splicer;
2,DACAS-Digital Analysis Core Alignment Systems;
3,5 inch high resolution color LCD touch screen,500X magnification ,visible clealy with eyes;
4,Packed with detachable 5200mAh battery,more than 280 times of splicing and heating;
5,Auto-splicing mode,using friendly design;
6,German CNC technique and intergrated fiber-adjust frame,which make performance much stable;
7,3 high-power white LEDs and illuminated keypads simplifies your work at nightt;
8,Detachable multifunction fixture,suitable for various fiber types;
9,Dust-proof,water-proof,high temperature resistance,adapting to various altitude and harsh environment ;
10,Optical imaging system ranks No.1 in the world;Built-in Janpanese components and Korean chipset;
| Model | FST-83A |
| Applied fiber category | SM/MM/DS/NZDS |
| Diameter of fiber | 0.25-3.0mm/indoor cable |
| Fiber placed&Cleaved length | Coating diameter0.125-1mm/cleave length 8-16mm |
| Splicing mode | Pre-set 41 modes,can store 100 splicing modes |
| Typical splice loss | ≥60dB |
| Lighting | 3 high-power LED white light |
| Splicing time | 6-12s |
| Estimated splice loss | Yes |
| Splicing length | 20-60mm |
| Results storages | 2000 latest records |
| Tension test | 1.5-2.0N |
| Operating condition | Altitude 0-5000m,relative humidity 0-95%,-10-50℃,15m/s max wind speed |
| Storage condition | Relative humidity 0-95%,-40-80℃,battery storage:-20~30℃ long-term |
| Fiber view&Magnification | X,Y,XY,X/Y500X Magnification |
| Host machine Size/weight | 145*165*145mm/1965g(include battery) |
| Display | 90*bi-directional view,5'high resolution display with touch screen |
| Power supply | AC input 100-240V,DC input 12-15V |
| Battery capacity | 5200mAh |
| Heating times | Typical heating more than 280 times |
| Operating method | Button/touch screen |
| Adaptive discharge | Automatic ARC calibration by air pressure and temperature |
| Electrode life | 3000ARCs |
| Terminal | Mini USD 2.0 |
