Industrial Optical Fiber Fusion Splicer , Multi functional Eloik Fusion Splicer Alk 88a

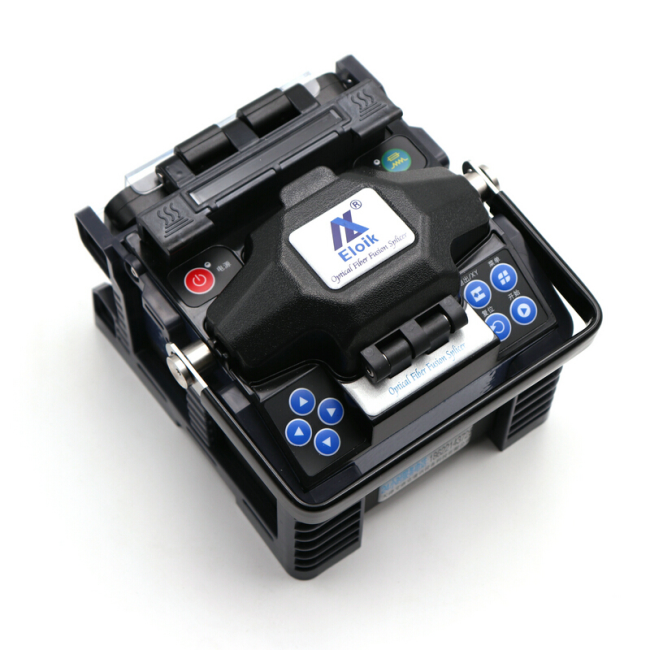

ALK-88 optical fiber fusion splicer is a mini fiber splicing equipment which is compactly designed, easy to carry and operation.

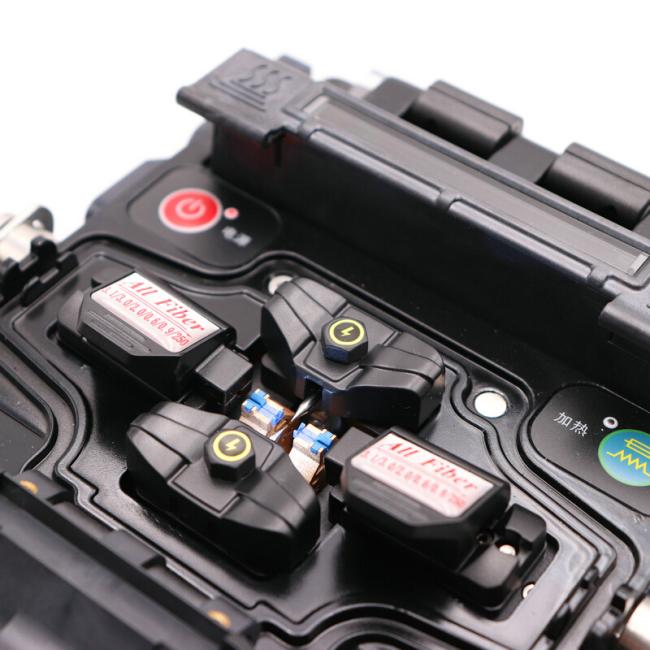

It has vivid and exquisite image-forming system and high precision image processing technology on fiber alignment which leads to its high proficiency in splicing and low loss. Its beautiful operation interface and body design which conforms to operation principle of ergonomics greatly improve user experience. It is equipped with large capacity lithium battery which provides reliable guarantee for a long time fieldwork. In summary, ALK-88 is a totallyautomatic small, light and beautiful Optical fiber fusion splicer with high performance, high safety, low power consumption and can be easily operated.
-
Applicable fiber Type: SM, MM, DS, NZDS
-
Applicable fiber Count: Single
-
Applicable fiber diameter: Cladding diameter of 125μm, coating diameter 250~900μm
-
Splice Mode: Stored 40 groups, 80 groups of user-defined
-
Average splice loss: 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS)
-
Return Loss: More than 60dB
-
Connecting time: 9sec (typical time)
-
Splice loss evaluation: Have
-
Tensile test: 2N
-
Screen: 4.3inch color LCD
-
Optical magnification: X/Y:115 times, X,or Y: 230 times
-
Power Supply: 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
-
Battery: Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h, can be resued 500 times
-
Maximum storage: 5000 set of the latest record storage
-
Data interface: USB2.0
-
Operating environment: Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10 oC ~5 oC, the maximum wind speed 15 m/s
-
Storage Conditions: 0 to 95% relative humidity, temperature-40 oC~80 oC(except battery,) temperature -10 oC ~30 oC(battery)
-
Weight: 1.54kgs (without battery), 1.82kgs(including battery), including attachments packing gross weight:5.38kgs
-
Corrosion resistance: Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
-
Size: 150D X 130W X 126H (mm)
-
Packing: New waterproof, drop, more than can be heavy 300kgs
|
Product name |
ALK-88 FTTH Optical Fiber Fusion Splicer |
|
Fiber Types |
SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS |
|
Fiber Core Number |
Single core |
|
Fiber Diameter |
Cladding diameter of 125μm, coating diameter 250~900μm |
|
Splice Mode |
Stored 40 groups, 80 groups of user-defined |
|
Average splice loss |
0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
|
Speed |
7s Splicing, 14s Heating |
|
Wiring Devices |
MDF |
|
Weight of the Equipment |
1.54kgs (without battery) |
|
Data Interface |
USB2.0 |
|
Product Keywords |
Fusionadora de Fibra Optica ALK-88 Optical Fusion Splicer |
