optical Inno Instrument M7 Fusion Splicer Intelligent 4 motor
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
inno
Product Description
Inno fusion splicer Automatic intelligent optical fiber 4 motor inno m7 fusion splicer

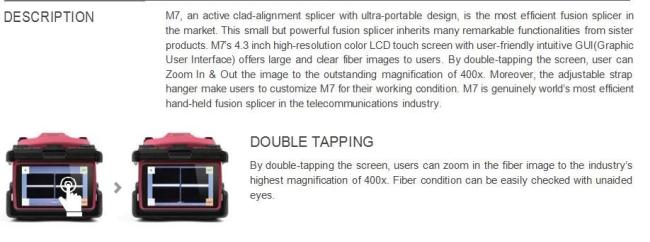

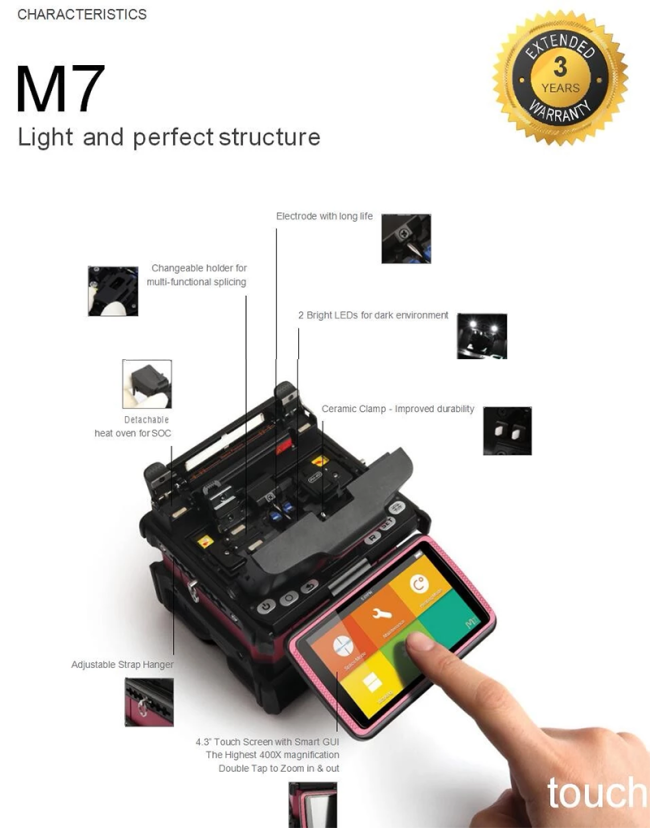

M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but powerful fusion splicer inherits many remarkable functionalities from sister products. M7's 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, user can Zoom In & Out the image to the outstanding magnification of 400x. Moreover, the adjustable strap hanger make users to customize M7 for their working condition. M7 is genuinely world's most efficient hand-held fusion splicer in the telecommunications industry.
| Model | M7 |
| Dimension | 124H x 144W x 131D (including rubber bumper) |
| Weight | 1.56kg (including battery) / 1.31kg (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | 0.25~3.0 mm / indoor Cable |
| Compatible Fiber / Cable | 10 - 16 mm |
| Cleaved Length | 80 μm - 150 μm |
| Cladding Diameter | Max 100 modes, preset 7 modes |
| Typical Splice Loss | Measured by cut-back method relevant to ITU-T standards. |
| Return Loss | >> 60dB |
| Lighting | 2 White LEDs |
| Splicing Time | 12 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20 mm - 60 mm |
| Heating Time | Typical 20 sec |
| Results Storage | Last 10,000 records |
| Tention Test | 1.96~2.25N |
| Operating Condition | Altitude 0~5000m above sea level, Humidity 0~95%RH, -10~50°C, Wind 15m/s |
| Storage Condition | Humidity 0~95%RH, -20~60°C, battery -20~30°C |
| Display | 90° bi-directional view, 4.3" Color High Resolution Display |
| Fiber View & Magnification | 300X magnification with 3 display modes, 400X partial magnification |
| Power Supply | AC Input 100 -240V, DC Input 9 -14V |
| No. of Splice / Heating with Battery | 3000mAh Battery Capacity / Typical 110 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen Automatic arc calibration by air pressure and temperature |
