Self calibration Ftth Optical Power Meter with vfl SC FC Connector
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Purple Horn
Product Description
Ftth optical power meter with vfl GT-006 all in one fiber optic power meter
Features:
Self calibration by user himself Rechargeable lithium battery supports continuous work for up to 48 hours.
Linear indicators (mW) and non-linear indicators (dBm) display in one screen

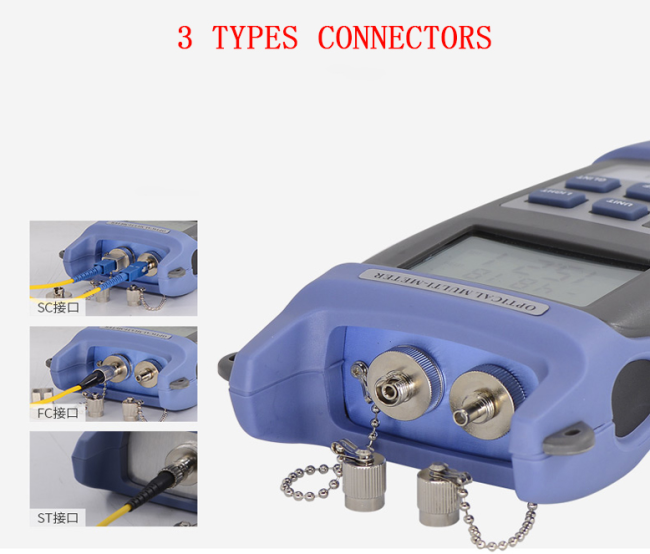

UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion
Optional auto power-off ability
Backlight ON/OFF
Self calibration by user himself Rechargeable lithium battery supports continuous work for up to 48 hours.
Linear indicators (mW) and non-linear indicators (dBm) display in one screen
UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion
Optional auto power-off ability
Backlight ON/OFF
| Calibration Wavelength(nm) | 800~1700 |
| Measurement Range(dBm) | -70+10 -50+26 |
| Uncertainty (dB) | ±0.2(5%) |
| linearity (dB) | 0.01 |
| Display resolution(dB) | 0.03 |
| Frequency ID Hz | 270 330 1K 2K |
| Wave ID nm | 85,098,013,001,310,100,000,000,000 |
| Date Storage Capacity | 1000 |
| Communication Port | USB |
| Connector | FC/SC/ST Interchangeable |
| Alkaline battery | 3AAA 1.5V or Li battery (9V) |
| Power Adapter(V) | 8.4 |
| Battery Operating time (h) | 240 without backlight |
| Operation Temperature(°C) | -10(°C) +60 |
| Storage Temperature(°C) | -25(°C)+70 |
| Dimension(mm) | 190 x 100 x 48 |
| Weight(g) | 400 |
