48000 Cleaves Fiber Optic Cleaver Tool , CT06 Fujikura Ct08 Cleaver
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Fujikura
Product Description
high quality cleaver fiber 100% Original Japan CT-06 CT-08 optical fiber cleaver fujikura
Suitable for FTTH Dedicated for single fiber cleaving.

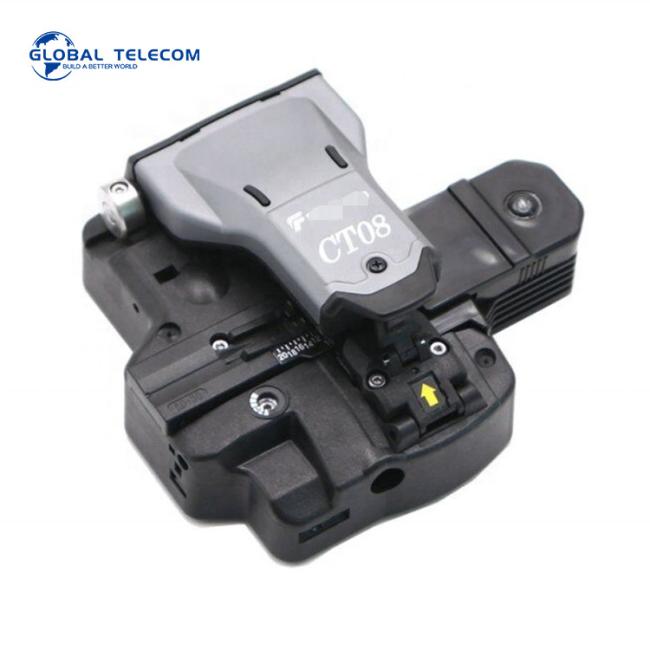

CT08 is the most robust cleaver. It is designed to provide easy replacement of fiber clamps and cleaving blade by customer thereby reducing maintenance cost and time.
Suitable for FTTH Dedicated for single fiber cleaving.
CT08 is the most robust cleaver. It is designed to provide easy replacement of fiber clamps and cleaving blade by customer thereby reducing maintenance cost and time.
Features:
* Applicable up to 16-fiber cleaving
* Automatic cleaving blade rotation via wireless communication
* User replaceable fiber clamps and cleaving blade
* 60,000 fibers blade life(3 height x 16 positions)
* Wide lever opening angle allows easy fiber placement
* Single-action operation including fiber scrap collection
| Fiber core number | single core |
| Cladding diameter | 125μm |
| Coating diameter | 0.25 to 0.9ma *Use fiber clamp or fiber tray
2 to 3 mm leather cable or pigtail (use fiber tray AD-50)
|
| Cutting length |
10mm 5 to 20mm(coating diameter=0.25) 10 to 20mm(coating diameter>0.25)
|
| Fiber placement | Fiber clamp Fiber tray:AD-50 |
| Cutting angle | 0.5 degrees under standard conditions |
| Blade life | 48000 cores (1000 wires×16 position:3 heights) |
| Blade position | 16 positions and 3 heights |
| Size | 110W ×95(D):45(H)m |
| weight | 185g |
| Operating environment | 0 to 95% RHand-10 to 50C(non-dew) |
| Storage environment | 0 to 95% RHand-10 to 50C(non-dew) |
| Environment adaptability | Impact resistance:76cm (30inch) drop in all directions |
| Dustproof:Exposure to dust(equivalent to aluminum silicaye power with diameter of 0.1 to 500 μm) | |
| Rainproof and precipition in 10 minutes under the conditions of 10m/hr |
