Sumitomo FC 8R Fiber Optic Cleaver Tool Lightweight One Hand Operation
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 work days
Brand:
Sumitomo
Product Description
FTTH Original Japan fiber cleaver sumitomo FC-8R cleaver fiber cutter fc-8r cleaver optical fiber
Features:
01,Lightweight and compact
02,One hand operation with minimal steps
03,The FC-8R can make 60,000 cleaves. Manual blade rotation and blade height adjustment are not necessary.
04,Advanced automatic fiber offcut collection
Four Points:

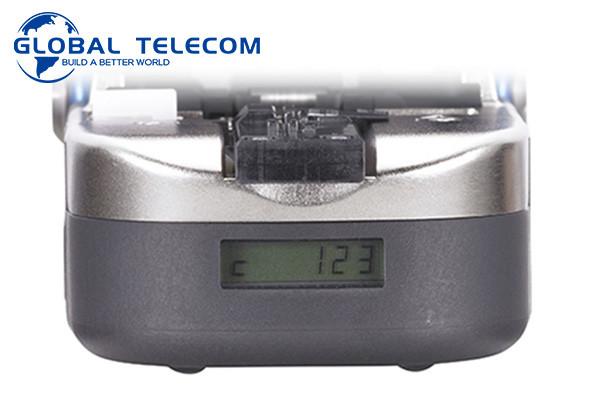

01,Smart cleave counter
02,Half-open Suitable when using in one hand

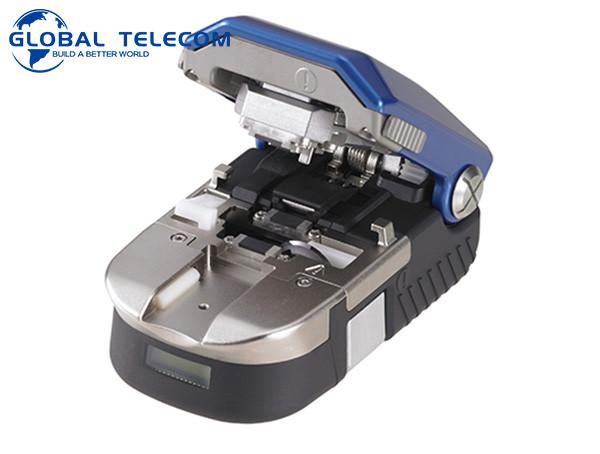

03,Wide-open Suitable when using on the work bench or during the maintenance

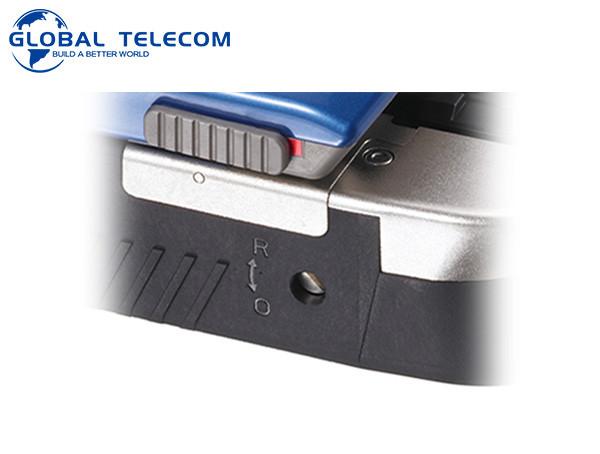

04,User selectable blade operation Rotation and fixed mode are available

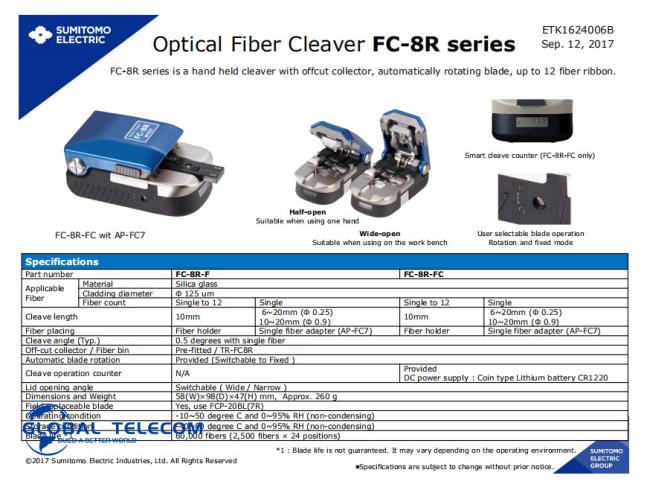

| part number | FC-8R-F FC-8R-FC |
| material | sillica glass |
| claddingdiameter | 125um |
| cleave angle | 0.5 degrees with single fiber |
| off-cut collector/Fiber bin | Pre-fitted /TR -FC 8R |
| automatic blade rotation | provided (switchable to Fixed) |
| Dimensions and weight | 58(W)*98(D)*47(H)mm,Approx.260g |
| Field replaceable blade | yes,use FCP-20BL(7R) |
| Storage condition | -40~80 degree C and 0~95% RH (non-condensing) |
| Blade life*1 | 60000 fibers (2500 fibers * 24 positions) |
