MTS-2000 JDSU Smart OTDR Handheld 1310/1550nm All day battery life
JDSU Smart Handheld OTDR updated from MTS-2000
The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks-with a tailored OTDR interface and automatic analysis that any technician can understand. With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
Advantage:
1. Combines all essential fiber tests in one handheld with visual fault locator (VFL), optical power meter (OPM), and p5000i microscope options
2. Simplifies OTDR analysis with Smart Link Mapper (SLM) option
3. Upgrades easily in the field
4. Automates testing with objective, pass/fail results
5. Enhances productivity anywhere with powerful network connectivity options
Features:
1. Single-/dual-/tri-wavelength versions with 1310, 1550, and in-service 1625 nm wavelengths

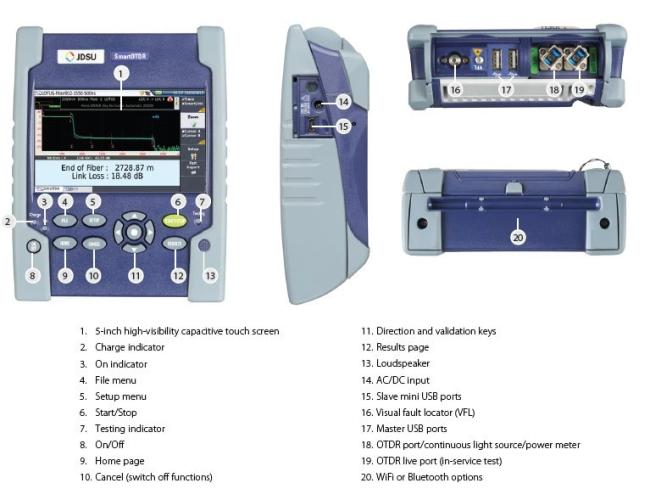

2. Light, compact, hands-free design includes 5” high-visibility outdoor touchscreen`
3. Integrated CW light source
4. PON optimized to test through a 1x128 splitter
5. Automated fiber inspection and macrobend detection with pass/fail analysis software
6. 3G/4G connectivity via USB, Bluetooth/WiFi options
7. 1-year warranty
8. All-day battery life
| Fiber alignment | Core/cladding alignment / Manual alignment |
| Splicing time | 5S(AI-9) |
| Heating time | Automatic heating(Preheating) |
| Focus mode | Six motors Auto focus |
| Applicable Fibers | SM(G.652&G.657),MM(G.651)DS(G.657),NZDS(G.655) |
| Splice Loss | 0.025dB(SM),0.01dB(MM), 0.04dB(DS/NZDS) |
| Control technology | Real-time control and calibration of fusion ARC |
| Return loss | Better than 60DB |
| Fiber diameter | Cladding Diameter(80-150μm),Coating Diameter(100-1000μm) |
| Fiber Cleave Length | Coating less than 250μm(8-16mm),Coating less than 250-1000μm(16mm) |
| Shrinkable tube | 60mm,40mm |
| Size | 130mm*122*148 |
| Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current |
