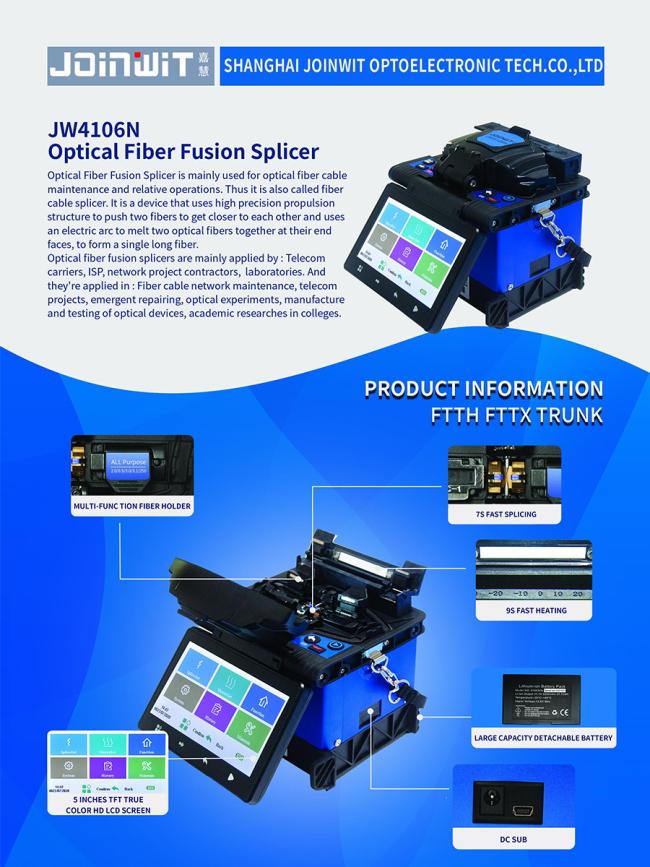

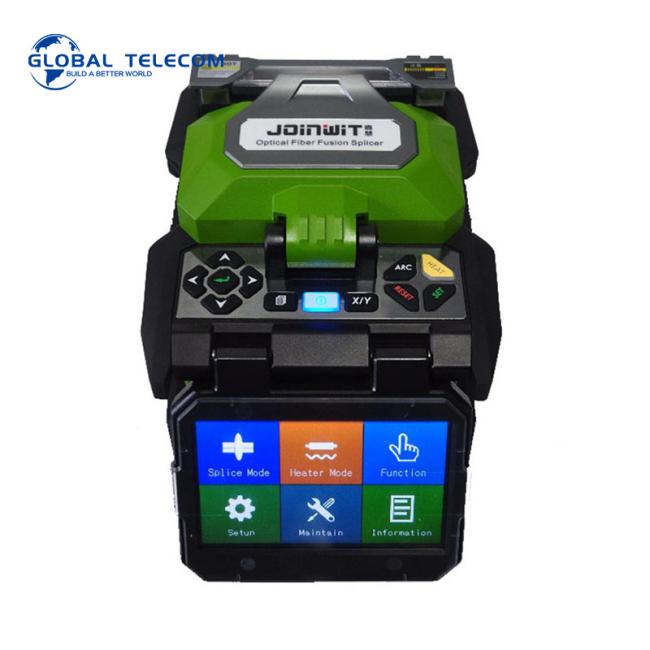

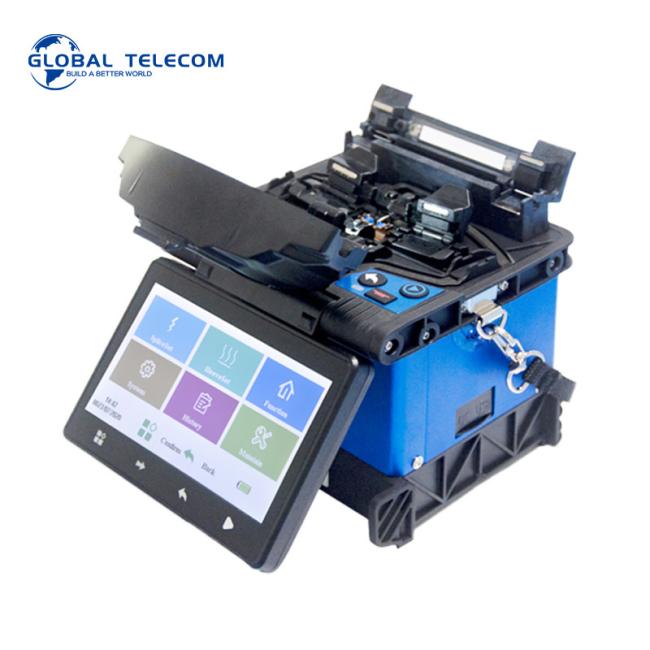

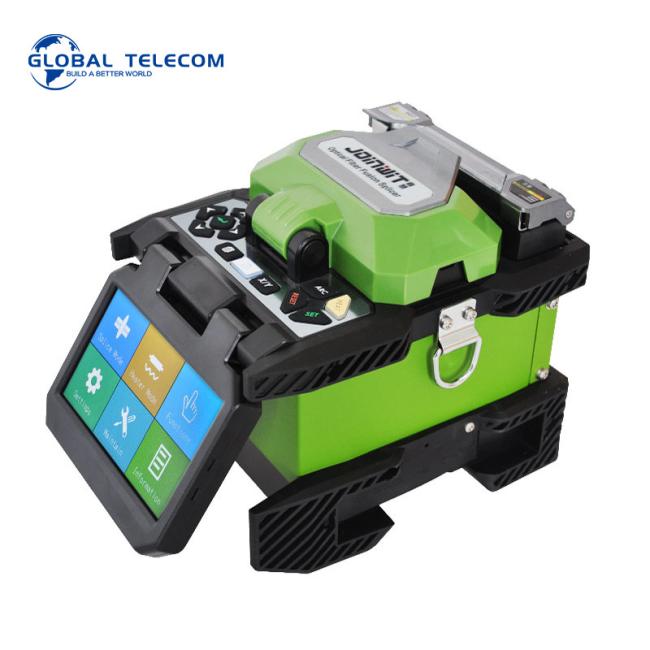

JoInwit fusion splicer JW4106N FTTH Welding splicing machine

Product Description:
Obtaining 16 patens of invention and 58 technical innovations, a brand-new product—4106S Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.
4106S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively.
Compared with TW4106, our start product, TW4106S lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%.You can get unprecedented fusion splicing experience.



Features:
1.Precise cladding alignment, ultra-low fiber fusion splicing consumption 7s fast fusion splicing
2.18s highly efficient heating
3.320 times image magnification
4.5mm fusion splicing for fibers of ultra-short cutting length
5.300 groups of fusion splicing modes
6. 100 groups of heating modes
7. 10000 groups of fusion records
8. 64 images storage Ceramic presser foot
9. Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
10. Three Splicing modes: auto, half-auto, manual
11.Built-in modular lithium battery, supports 220 times of splicing and heating cycles.

Optical Specifications	4106S
Fiber heater	Effective heating length: ≤60mm Heating time: 10s~255s, settable as required. Typical heating time: ≤25s(standard 40mm sleeve),≤28s(standard 60mm sleeve).
Power supply	External DC power input Input voltage is 13.5±0.5V; input current≥4.4A; socket center is positive. Built-in lithium-ion battery for power supply. The lithium-ion battery is 11.1V, ≥5.2Ah, full charging time is approx. 2.5h.
Dimensions and weight	Dimensions: W×H×D=120mm×130mm×154mm(without vibration-free rubber pad) Weight:approx.1.95kg(with the lithium-ion battery), approx.1.75kg(without the lithium-ion battery).
Environmental conditions	Operating temperature: -10C~+50C Temperature limit: -20C~+55C Operating humidity: 95%RH and below(non-condensing) Max. wind speed: 15m/s Storage temperature: -40C+80C, Storage humidity: 95%RH and below (non-condensing).
Splice loss	Typical loss values of spliced points are: Single-mode fiber: 0.03dB Multi-mode fiber: 0.01dB Dispersion shifted fiber: 0.04dB Non-zero dispersion shifted fiber: 0.04dB Typical splice time: 7s(FAST mode, typical) Monitor: with touch screen function, 4.3 inch TFT color LCD USB port: system update and data transmission Real-time display of remaining battery capacity Built-in lighting with high brightness, for convenient loading of fibers



Package Details:
Instrument (Main Body),Fiber Cleaver,Fiber Coat Stripper,Internal Battery, Charger, AC Power Cord,2G USB Flash Disk, Spare Electrodes (one pair), Cooling Tray, Alcohol Pump Bottle, Carrying Case, Carrying Belt, User's Manual.
