China PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam for sale

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

Price Negotiable

Price: Negotiable

MOQ: 3KM

Delivery Time: 5-8 working days after payment

Brand: Purple Horn or OEM

Product Description

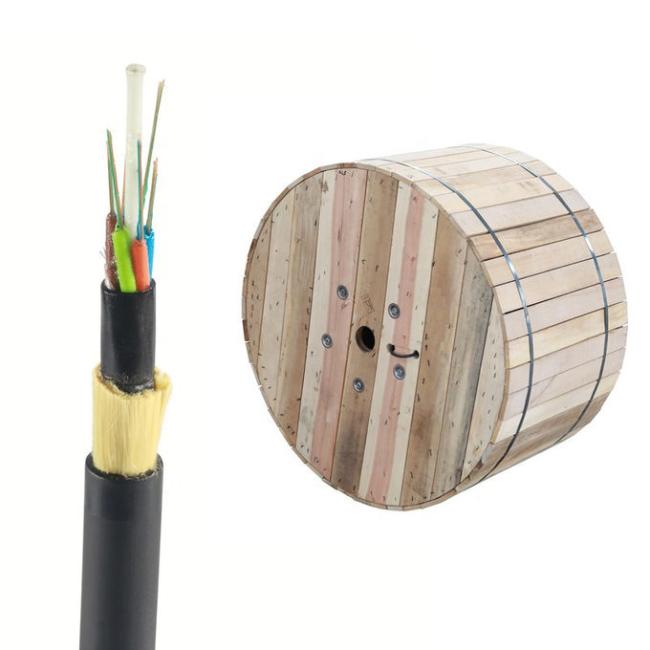

ADSS fiber optic cable 12 core 24 core 48 core 96 core 144 core 50M Spam 100 Spam ADSS optic fiber cable

Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

Product Parameters

Temperature Range
Transport/storage temp	-30℃～+65℃
Installation temp	-20℃～+50℃
Operation temp	-30℃～+65℃

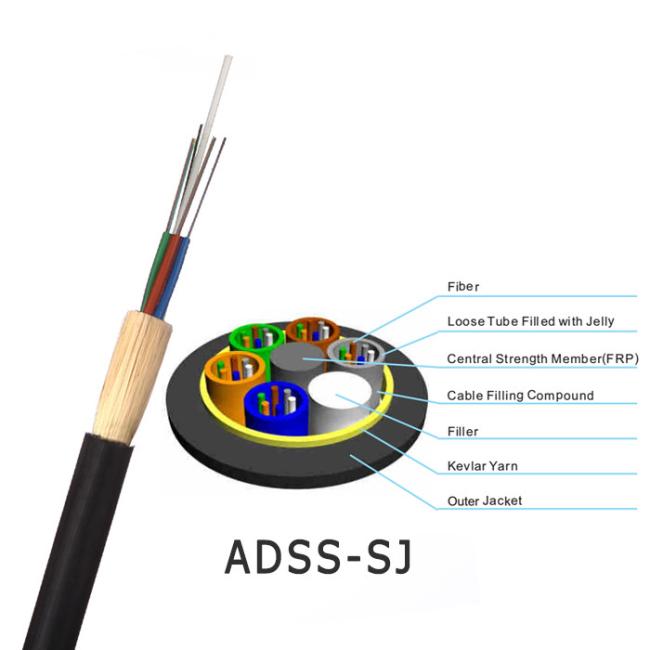

Structural Characteristics
Fiber count	2～144
Loose tube	Colored fiber in PBT loose tube,filled with fiber gel
Central strength member	Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
Waterproof layer	Cable core filled with cable gel or water blocking tape, water blocking yarns
High-strength aramid yarn	Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
Sheath	Anti-tracking(AT) material or Polyethylene(PE)

Cable Performance Parameter
Span meter	200	300	400
Related Strength Tension(RTS)	17.5 kn	20.6 kn	28 kn
Max Allowable Tension(MAT)	6.9 kn	8.2 kn	11.5 kn
Allowable Crush Resistance	Long Term: 1100 n/100mm	Long Term: 1100 n/100mm	Long Term: 1100 n/100mm
Allowable Crush Resistance	Short Term: 2200 n/100mm	Short Term: 2200 n/100mm	Short Term: 2200 n/100mm
Minimum Bending Radius	Operating: 220 mm	Operating: 220 mm	Operating: 220 mm
Minimum Bending Radius	Installlation: 360 mm	Installlation: 360 mm	Installlation: 360 mm
Temperature Range	Operating: -40 /+70℃	Operating: -40 /+70℃	Operating: -40 / +70℃
Temperature Range	Installlation: -15 / +60℃	Installlation: -15 / +60℃	Installlation: -15 / +60℃
Out Sheath Material	Electrical Resistance AT (Borealis material 6081) Sheath
Note	ice accretion 5MM,weed speed:30M/S

Aramid ,Non-metal FRP Strenghth
1. High quality Import Aramid Yarn
2.Center FRP Strength,Anti-electromagnetic interference
3.Span 100M 120m 140M 160M to 1000M
Fiber Core
1.The fiber optic cable adopts the well-known brand A-class core, which has high transmission rate, long distance and small
attenuation.
2. Single Mode/Muli Mode Options
3. 12 different Colors Option, can do as your request
