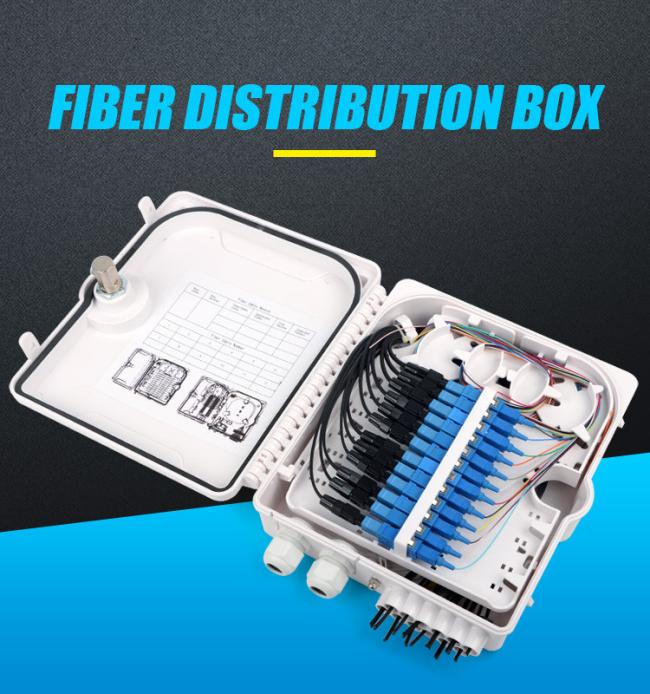

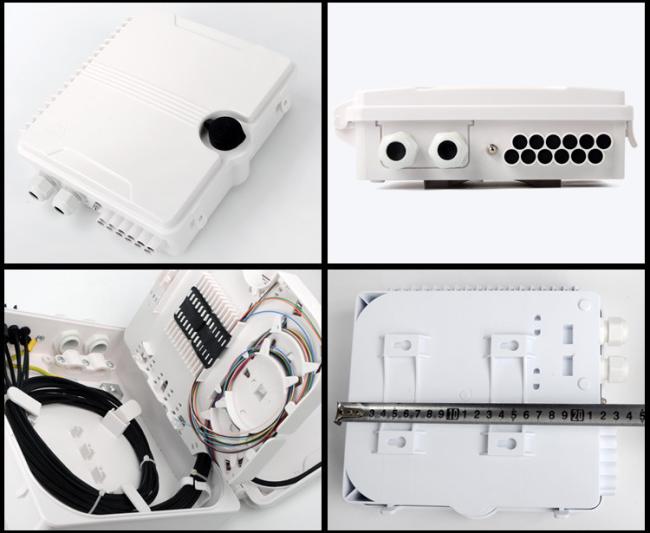

ODP Outdoor Fiber Optic Distribution Box 12 Ports Wall / Pole Mounted
12 ports ODP outdoor white FTTH Optical Distribution Point Fiber Optic External Box
Product Description

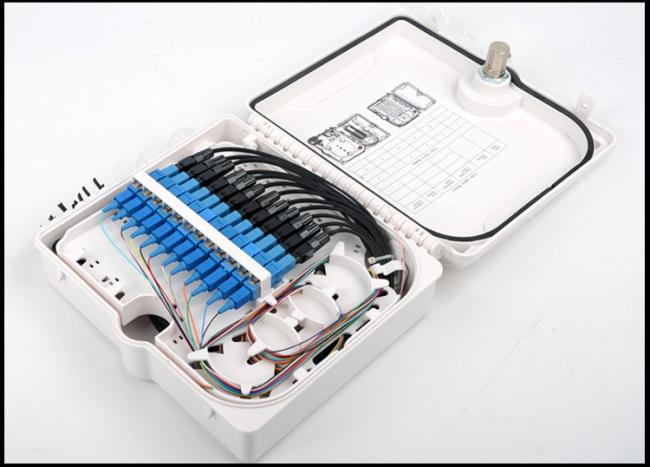

The splitter termination box is suitable for fiber terminal point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment, especially suitable for mini-network terminal distribution. it is widely applied in FTTH indoor and outdoor terminal applications.
Feature:

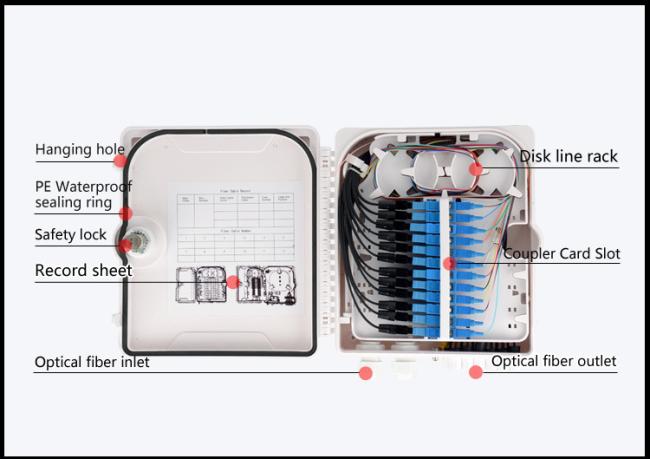

•2 port for common cable and 12 port for ftth drop cable.

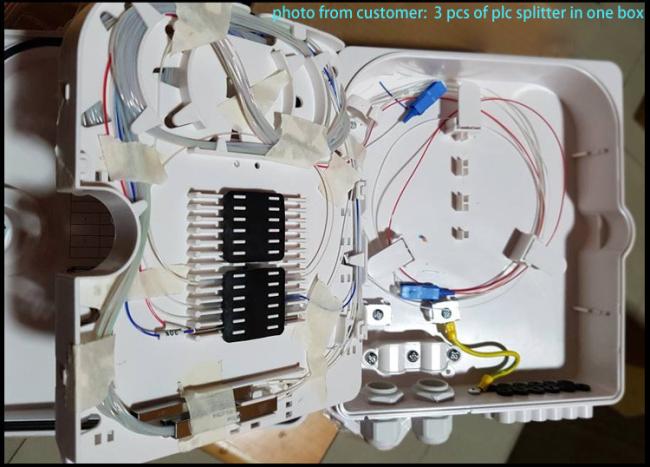

•Provide two options for the slots,can contain 1*8 plug-in cassette splitter or 12 pcs sc adapters and pigtails.
•Function of anti-UV,shock resistance and waterproof.
•The top cap opening angle is 180° .
•Small and exquisite,let the construction simple and convenient.
| Fiber Optic Distribution Box | IP Rate | IP65 | |
| Product Model | FDB-12BE | Product Size | 230*200*70 mm |
| Ports | 2 inlet port / 12 out port | Packing Quantity | 10 pcs / carton |
| Compatible with |
1:8 plc splitter or 12 core adapter pigtail |
Material | ABS |
| Installation Type | Wall / pole-mounted | Net weight | 0.7kg |

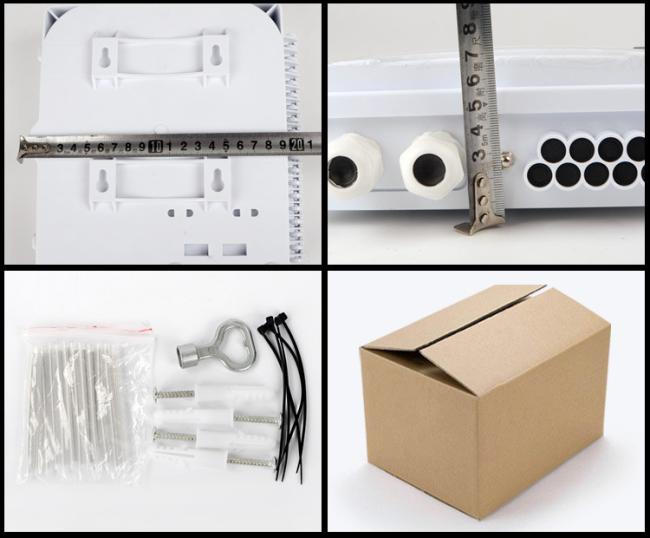

| Accessories | 1. Wall mounting kits : 2 pieces 2. Screws : 2 pieces 3. Cable tie: 4 pieces 4. Key :1 piece |
||
Reminder: The price showed in the page don't included any plc splitter or fiber adapters, if you want to add any accessory, please send me message.
