MPO OM3 Fiber Patch Cable 8 Cores 12 Cores PVC LSZH Jacket Materials

Price Negotiable

Price: Negotiable

MOQ: 200

Delivery Time: 5-10 work days

Brand: Purple Horn

Product Description

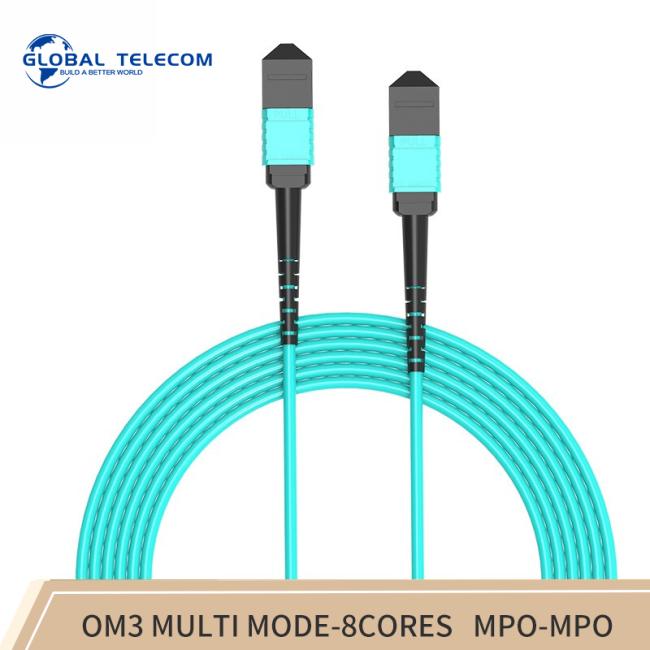

8cores 12cores OM3 MPO Patch Cable

Description:
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers where need space saving and reduce cable management troubles.
In addition, with Senko MPO Plus Connector and Corning® ClearCurve® Fiber, the high performance of connection is assured.
Please kindly note that the US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to MPO connectors.

			Product

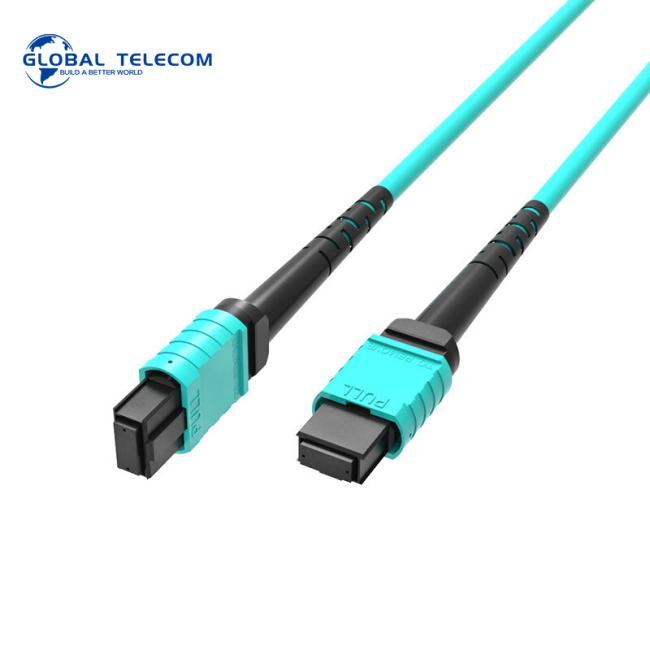

			MPO Fiber Patch Cord OM3 8 Fibers

			Pre-Terminated Connector

			MPO Female to MPO Female

			Polished

			UPC

			Fiber Count

			8 Fibers 12 Fibers

			Fiber Mode

			MM OM3

			Jacket Color

			OS1, OM1, OM2, OM3 or OM4 For Option

			Diameter(OD)

			8/12Fiber:3.0mm,24Fibers;3.8mm

			Insertion Loss

			< 0.35 DB Or <0.7db

			Return Loss

			>50db

			Jacket Materials

			PVC LSZH

			Product Keywords

			MPO Patch Cable Crossover Cable

Featurers:

* High Density Back Bone Cabling

* 65 - 75% space reduction

* Pre-terminated at Factory

* Plug-andPlay Installation

* Female/Male type of MTP/MPO connector

* MTP/MPO 12/24 Core Connector on both ends

* Test Report with each assembly

Application:

* Data Centre Infrastructure

* Storage Area Network- Fibre Channel

* Parallel Optics

* Infiniband

* Emerging 40 and 100Gbps Protocols

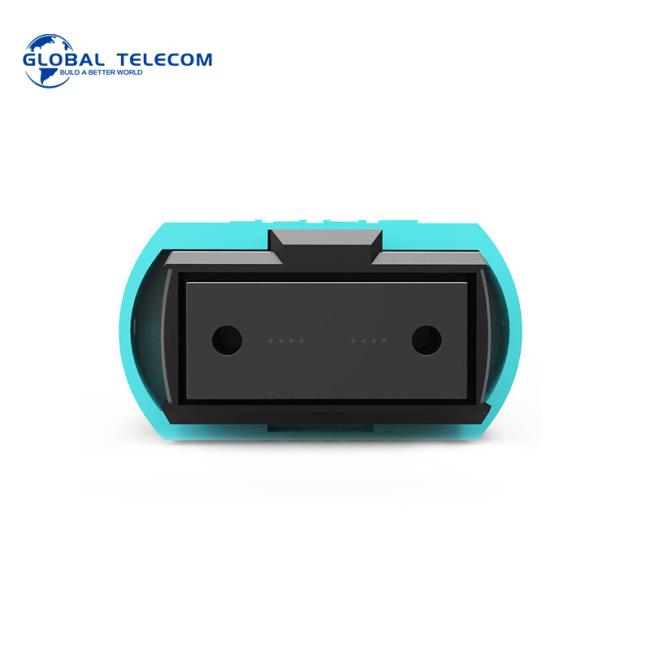

			Polishing Connector (A/B)

			Polishing Connector

			MTP/MPO (MM)

			MTP/MPO APC

			Insertion Loss (IL)

			< 0.35 dB

			< 0.35 dB

			Return Loss (RL)

			> 30dB

			> 60dB

			Mating Cycles Delta IL

			< 0.2 dB after 500 mating cycles

			< 1000 mating

			Fiber Cable Type

			Multimode: OM1, OM2, OM3, OM4;

			Single mode: G652D or G657A;

			Cable Color

			Orange for MM OM1 and OM2 fiber;

			Aqua for MM OM3 fiber;

			Violet for MM OM4 fiber

			Yellow for SM G652 and G657A fiber;

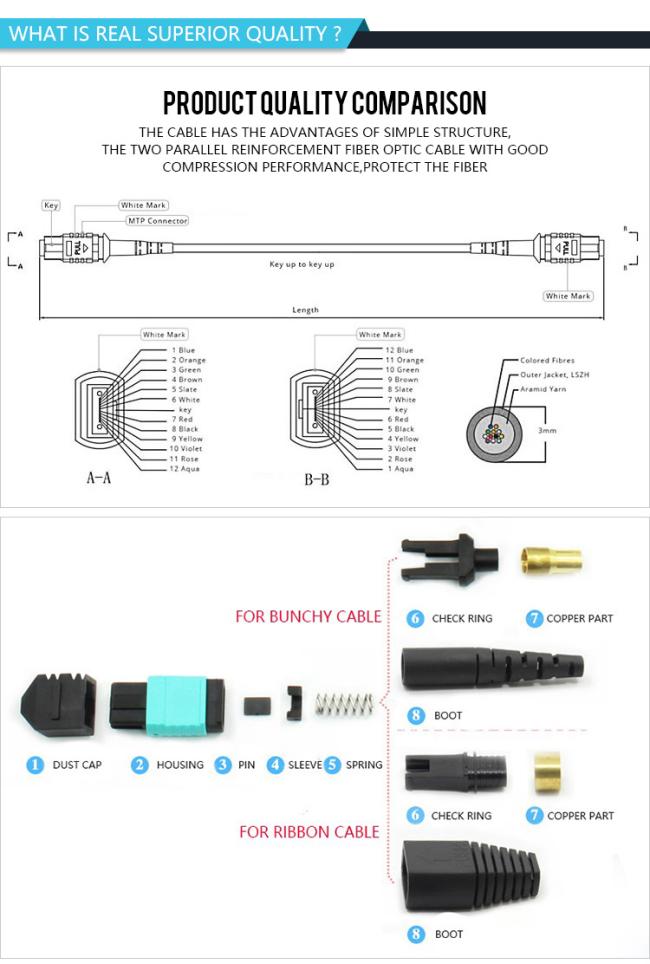

			Cable Construction

			Round 3.0 mm - LSZH - 8/12fibers

			Round 3.8 mm - LSZH - 24 fibers

			Fiber Count

			12 / 24

			Patch Cord Pull-out Force

			5N

			Operating Temperature

			-20°C~+70°C

			Storage Temperature

			-40°C~+80°C
