Full Automatic Steel Pipe Cutting Machine Cutter TGMCO
Price:
usd 10,000-15,000
MOQ:
1 set
Delivery Time:
30 days
Brand:
TGMCO
Product Description

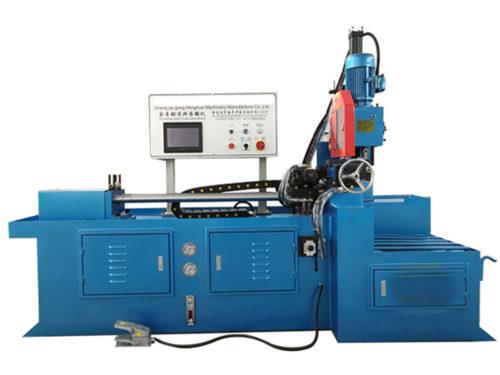

Full Automatic Pipe Cutting Machine
Welcome to Taicang Global Machinery Co., Ltd
At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!
A. Steel pipe specifications:
1. Material: Steel pipe ST32
2. Pipe size range: round pipe 10 -120 x5mm, square pipe: 10*10-120*120x6mm
3. Servo automatic feeding 1m
- Cutting capacity:
| No | Size | Cutting quantity |
| 1 | 100x100mm*6mm | 1pc |
| 2 | 20*20mm | 16pcs |
| 3 | 30*30mm | 9pcs |
| 4 | 19mm | 16pcs |
| 5 | 25mm | 9pcs |
| 6 | 50mm | 4pcs |
- Main configuration:
| No | Item | Qty | Remark |
| 1 | YT425 heavy type cutting head | 1 unit | Full gear 4 shafts drive |
| 2 | Servo feeding device (precise rod) | 1 unit | Taiwan single time max feeding length 1m |
| 3 | Feeding linear guide | 1 unit | Taiwan TPI(25mm) |
| 4 | Feeding servo motor | 1 unit | Mitsubishi (1000W) |
| 7 | Operation system | 1 unit | Mitsubishi PLC |
| 8 | Touch screen | 1 unit | 10 inches |
- Components configuration:
| No | Item | Spec | Supplier | Qty | Remark | |
| 1 | Cutting feeding device | YT425-02 | YT | 1 unit | Hydraulic | |
| 2 | Cutting clamp | YT425-03 | YT | 1 unit | Hydraulic | |
| 3 | Servo feeding system | YT425-04 | YT | 1 unit | Servo feeding | |
| 4 | Cutting motor | 4KW | 1 unit | 4 grade speed adjusting | ||
| 5 | Hydraulic system | Customized | Yuken | 1 unit | ||
| 6 | Hydraulic motor | 3KW | Guanshun | 1 unit | ||
| 7 | Electric control | PLC | Mitsubishi | 1 unit | ||
| 8 | Operation system | 10’’ | YT | 1 unit | ||
| 9 | Cooling system | Recycle water | 1 unit | |||
| 10 | Lubrication system | motorized lubrication pump | 1 unit | |||
| 11 | Linear guide/rod | 25-32mm | Taiwan TPI | 1 unit | ||
| 12 | Electrical items | Schneider | 1 unit | |||
| 13 | Servo sizing length device | 1000mm travel distance | 1 unit | |||
| Total machine power | 8.0kw | |||||
| Saw blade | OD: 275mm-450mm-ID 32mm x thickness 2.0-3.0mm | |||||
| Cutting rotation speed | 30,60,90 ,120 m/min 4 grade speed adjusting | |||||
| Machine size | 2900(L)×1180(W)×1900(H) mm | |||||
| Machine weight | 1400 kg | |||||
