14 Stations Welding Cable Tray Roll Forming Machine Cold Roll Forming Machine
Automatic High Speed Cable Tray Roll Forming Machine PLC Control
Description
Cable trays are used as an alternative to open wiring or electrical conduit systems which are commonly used for cable management in commercial & industrial construction. We are cable tray roll forming machine manufacture, we produce various of products such as type cable tray, mesh cable tray and ladder cable tray as your requirements. They are especially useful in situations where changes to a wiring system are anticipated.
Kinds of cable tray
Ladder type : Consist of both longitudinal side rails connected by individual transverse members called rungs.
Solid bottom type : Consists of both longitudinal side rails connected with a reinforced solid bottom. Solid bottom trays are most often used to provide electrical or magnetic shielding for very sensitive communications and signal circuitry.
Perforated type : Consist of both longitudinal side rails connected with a perforated bottom. Perforations in the tray bottom allow for maximum airflow to cables, so they can stay cool and won’t build up heat.
Machine components
| No. | Name | Qty |
| 1 | Manul Decoiler | 1 |
| 2 | Feeding Device | 1 |
| 3 | Punching Machine | 1 |
| 4 | Main Roll Former | 1 |
| 5 | Hydraulic Cutting Device | 1 |
| 6 | PLC Control | 1 |
| 7 | Hydraulic Station | 1 |
| 8 | Output Table | 2 |
Technical parameters
| Items | Items | Specifications |
| Material of coil | Material Width | 100-800mm |
| Material Thickness | 0.8-2.0mm | |
| Manual Uncoiler | 3-5 tons | |
| Leveling | 5 rollers | 2rollers up, 3rollers down |
| Forming system | Forming Speed | 5-10m/min |
| Forming Stations | about 12-14 stations | |
| Roller Material | 45# steel | |
| Shaft diameter | 60-90mm | |
| Shaft Material | High Grade 45# steel | |
| Main Motor Power | 15-25kw | |
| Machine structure | Archway or wall panel | |
| Transmission | Gear box or chain | |
| Cutting system | Hydraulic Power | 5.5-7.5kw |
| Cutting blade | Cr12Mov,quenching HRC 58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| PLC Control System | Siemens/Panasonic |

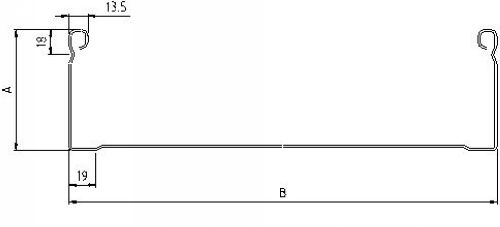

Profile drawing
Working flow
Decoiler—Feeding&Leveling—Punching—Roll forming—Cutting—Output table
Picture for reference
Packing & Delivery
