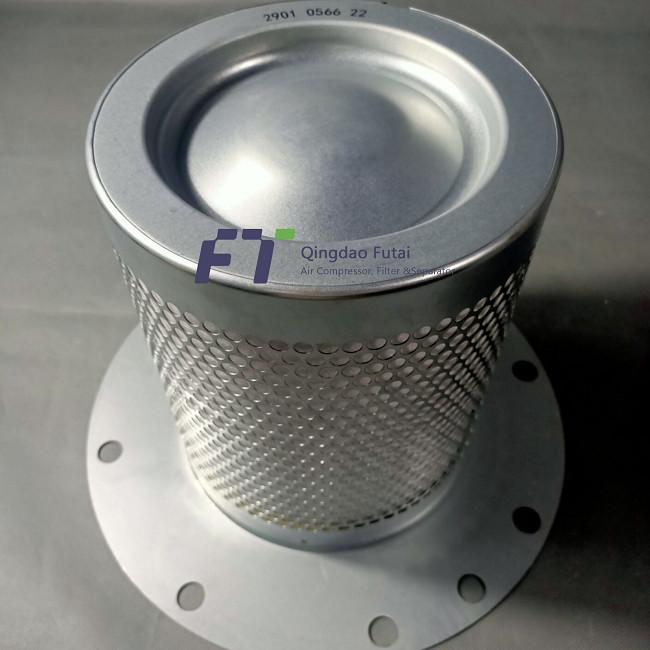

1622365600 Glass Fiber Screw Compressor Air Oil Separator
1622365600 Glass Fiber Screw Compressor Air Oil Separator
Screw Compressor Air Oil Separator
1. A compressor oil air separator filter is installed at the screw air outlet, and the compressor separates the oil from the air to obtain clean compressed air.
2. Mainly used for cleaning compressed air of air compressor to ensure safe and effective operation of air compressor.
| 1622365600 Cross Reference | |||
|---|---|---|---|
| ATLAS COPCO | 1622365600 | MANN | 4930252521 |
| ATLAS COPCO | 2901056622 | Sotras | DC 3266 |
| 2911011200 Application | |||
| GA 55 PLUS from 2005 | GA 75 VSD from 2006/07 | ||
| GA 75 PLUS from 2005 | GA 90 VSD from 2006/07 | ||
| GA 90 froms/n API 610000 | GA 55 PLUS from s/n API 610000 | ||
| GA 90 from 2005 | GA 75 PLUS from s/n API 610000 | ||
Feature:
1. Filtration accuracy: 0.1um
2. Filtration efficiency: 99.99%
3. Service life: about 3500-5200 hours
4. Filter material: American HV (Binzer) and Lydall glass fiber.
5. Residual oil content: <3ppm
6. Initial pressure difference: ≤0.02Mpa
Advantage:
The safe and reliable separator can effectively treat solid pollutants, including mill scale, rust, dust, ground fines, corrosion by-products, paraffin and asphaltenes. Our separators are ideal for applications containing hydraulic oil, diesel oil and lubricating oil, where water is often infiltrated.
Screw air compressor oil separator application
Power stations; steel mills and mines; textile mills; chemistry; metallurgy; railways; machinery industry; medical and food industries
