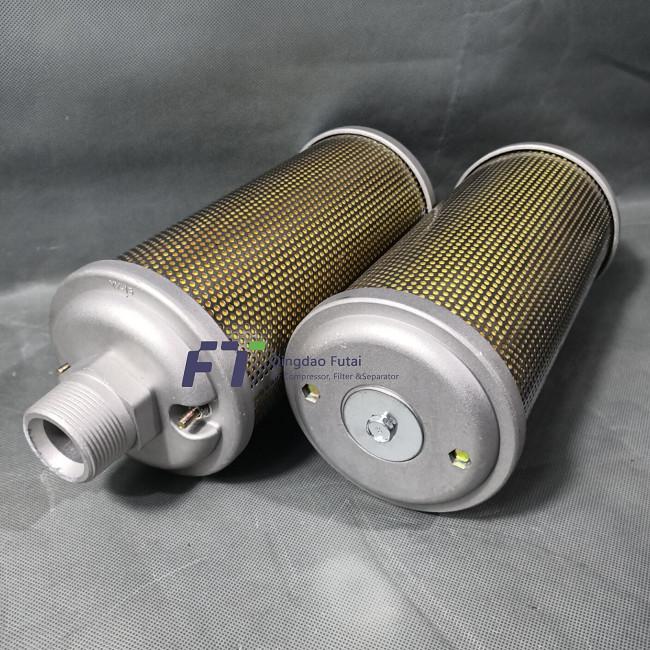

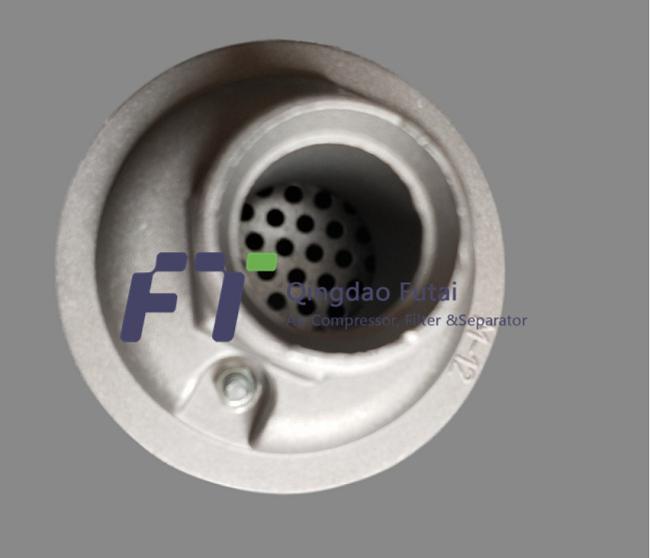

XY15 Dryer Silencer Screw Air Compressor Spare Parts
XY15 Air Compressor Silencer Screw Air Compressor Spare Parts
Silencing is therefore a critical issue for designers. Ideally the exhaust air would be quiet but this generally leads to high back pressure. A silencer which is quiet and has low back pressure which will not block with adsorbent dust is desirable.
Main materials are ultra-fine sound-absorbing glass fiber,which have good performance on sound-absorption and high temperature resistance , as well as sound filter media by special treatment imported from American This new type products are suitable for adsorption dryer with 1.0Mpa working pressure.
|
Model NO. |
Connection Size (Z) |
|---|---|
|
XY-02 |
1/4" |
|
XY-05 |
1/2" |
|
XY-07 |
3/4" |
|
XY-10 |
1" |
|
XY-12 |
1-1/4" |
|
XY-15 |
1-1/2" |
|
XY-20 |
2" |
|
XY-30 |
3" |
Techinical Parameters:
-
Application:exhaust mufflers for adsorption dryer
-
Material:sound-absorbing ultrafine glass wool with high-temperature resistance
-
Noise reduction:30db above
-
Opening pressure of by-pass safety valve:2.0~2.2 kgf/c㎡
-
Operating temperature:≤65℃
-
Max.operating pressure:10 bar
