Folding 35856376 Ingersoll Rand Alternative Screw Compressor Air Oil Separator

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Brand: QINGDAO FUTAI

Product Description

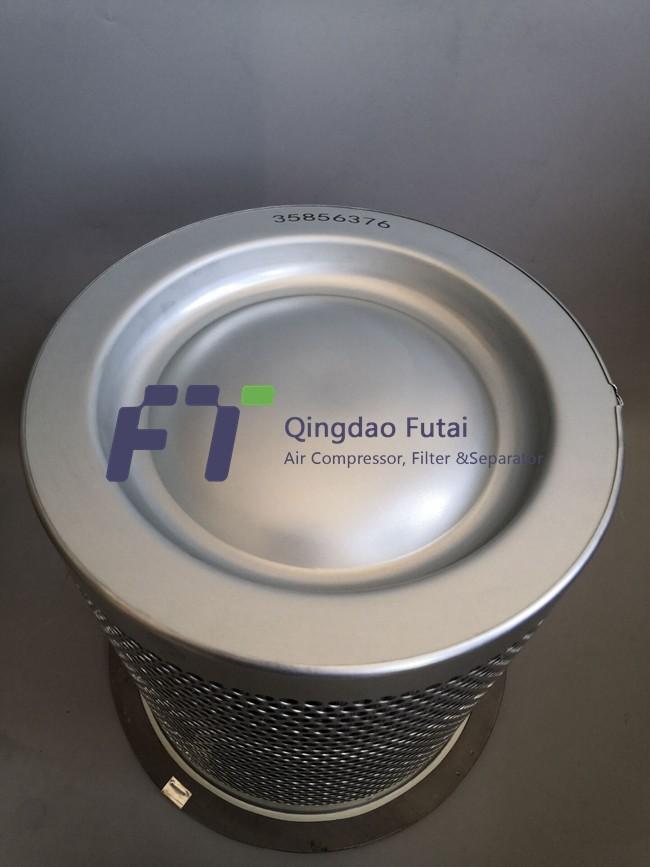

Folding 35856376 Ingersoll Rand Screw Compressor Air Oil Separator

If the compressed air in the system is carrying oil, would be mainly because of the following reasons :

Oil-water separator is not working correctly hence oil is being carried to the air receiver
The cylinder lubrication is adjusted at high quantity, leading to carryover of oil with air
The auto drain is malfunctioning

Air compressor Model	Separator	Air Filter	Oil Filter
Small UP	22388045	88171913	39329602
UP5-11/15/22	54749247	89295976	54672654
UP5-30/37	54749247	22203095	54672654
IR 37PE	54749247	22203095	54672654
M22S	54595442	39588470	39907175
M37S	54595442	39588777	39907175
M45	22089551	39708466	39911615
M55-75	54601513	39708466	39911631
M55S-75S	39894597	39708466	39911631
M90-110/160	54509427	39903281	39911631
M90-110/160	54509427	39903281	39911631
M132-160	54509427	39903281	39911631
M200-250	22219174	39903265	92888262

Product parameters

Model: Separator 35856376
Filter media: HV Fiberglass
Oil contained in compressed: below 3ppM
Filter media: fiberglass imported from HV&Lydall company
Filtration efficiency: 99.99%
Initial pressure differential: ≤0.02Mpa

Advantage:

The safe and reliable separator can effectively treat solid pollutants, including mill scale, rust, dust, ground fines, corrosion by-products, paraffin and asphaltenes. Our separators are ideal for applications containing hydraulic oil, diesel oil and lubricating oil, where water is often infiltrated.
