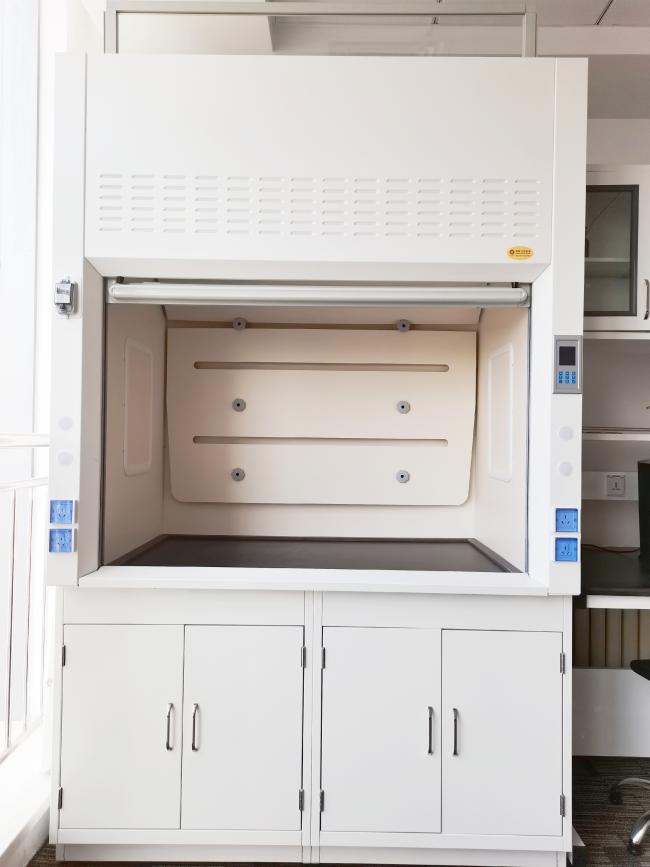

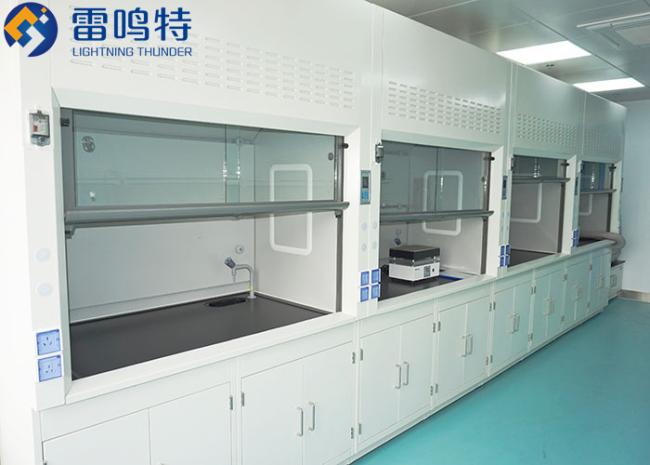

Chemical School 2.35m Height Laboratory Fume Hood Trespa Workbench
High quality laboratory fume hood school laboratory furniture real laboratory fume hood fume hood
Description:
The double-layer steel plate is made of 1.2 mm first-grade cold-rolled steel as the sound insulation material of the door. The epoxy powder coating on the surface has been tested by 49 chemicals without any change, and the adhesion test is 5B.
composition:
Workbench:
Epoxy resin/phenolic resin/galvanized steel/trespa/ceramic
Handle:
C-shaped metal handle, stainless steel or aluminum alloy material.
Glass window:
Tempered glass, high mechanical strength, good elasticity, acid and alkali resistance, corrosion resistance.
The glass window can be moved up and down. The whole window is divided into left and right parts. You can also pull left and right to prevent more air leakage
Roller latch:
It can effectively reduce noise and protect paint.
Hinge:
Using 2mm thick stainless steel hinge, the number of uses exceeds 100,000 times.
Centrifugal fan:
Small, powerful, quiet, PP material, 220 V/300 W, 2300 m3/h, anti-corrosion, low noise
Product Parameters
| product name: | Laboratory Fume Hood | ||
| Details | Parameter | Details | Parameter |
| Dimensions (W*D*H) (mm) | 1200 x 900 x 2350 mm | Wind speed | 0.3 - 0.6 m/s |
| 1500 x 900x 2350 mm | noise | ≤65dB(A) | |
| 1800 x900 x 2350 mm | Light up | 10W*1 | |
| Internal size(W*D*H)(mm) | 950 x 700 x 1150 mm | Blower | 1.1KW axial flow fan/centrifugal fan |
| 1250 x 700 x 1150 mm | Front window | 6mm tempered glass | |
| 1550 x 700 x 1150 mm | power supply | AC110/220V, 50/60Hz (optional) | |
| Height of work surface | 850 mm | Material | The main body is 1.0mm, 1.2mm thick cold-rolled steel plate, epoxy powder coating. |
| Exhaust volume | 700-1300m³/h | Accessories | air faucet, PP sink faucet: remote control water valve, remote control air valve, 4 waterproof sockets, 3 meters PP/PVC air duct, lighting LED control panel |
| 900-1700m³/h | Workbench | Standard configuration of epoxy resin worktop (with water edge) (chemical resistant phenolic, ceramic, stainless steel, PP-optional) | |
| 1300-2100m³/h | The inner lining board is 5mm thick, which is resistant to acid and alkali, high temperature and moisture. (Corrosion-resistant ceramic, glass fiber, stainless steel, PP--optional) | ||
FAQ:
1. What certificate does the fume hood have?
ISO9001, ISO14001, CE.
2. What color can you produce?
We have a variety of colors, such as white, black, blue, and can also be provided according to customs requirements.
3. How about the sample?
We can send you samples, but shipping and samples are charged.
4. How do I pay for my order?
We accept most payment methods. For example, T/T, L/C, the easiest way is T/T, 30% in advance, the balance before shipment.
5. What is the MOQ and payment terms?
Minimum order quantity: 1 set. Order more and the price is more favorable.
