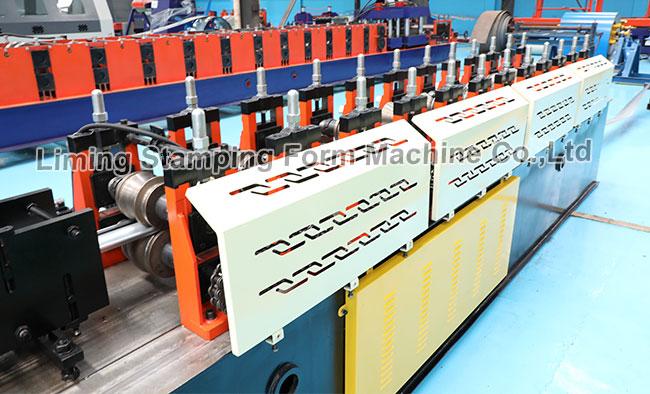

3.2t Roller Shutter Door Making Machine , anti wind door forming machine
175 Windproof Rolling Shutter Forming Machine
Rolling shutter machine models include: Australian-style rolling shutter door forming machine, thermal insulation rolling door forming machine, anti-wind door forming machine, of which 175 windproof rolling shutter forming machine and 125 windproof rolling shutter forming machine have been favored by customers and have been selling well .
Our company has been committed to the continuous R&D and update of the rolling shutter machine and 175 windproof rolling shutter forming machine for many years to ensure that we can provide customers with high-quality 175 windproof rolling shutter forming machine.
The 175 windproof rolling shutter forming machine is widely used in the production of rolling shutter doors in various industrial plants, warehouses, supermarkets and shopping malls.
Technical Parameters Of 175 Windproof Rolling Shutter Forming Machine
| Items | Specifications | Remarks |
| Material of coil | Material Thickness | 1.5-2mm |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | 18 m/min |
| Roller Stations | 12 stations | |
| Roller Material | 45# Steel with quenching 50mm shaft | |
| Maim Motor Power | 7.5 kw | |
| Hydraulic cutting Power | 4 kw | |
| Cutting | Material Of Cutting | CR12 with quench treatment |
| system | Hardness | HRC58-62 |
| Tolerance | +-0.5mm | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase |
| Also can satisfy Customer’s require | ||
| Control System | PLC (Panasonic) as list in the note | |
| Weight | About 2.5 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 4500mm* Width 600mm* Height 800mm |
