C Purlin Roll Forming Machines Of Various Specifications And Models
C Purlin Roll Forming Machines Of Various Specifications And Models

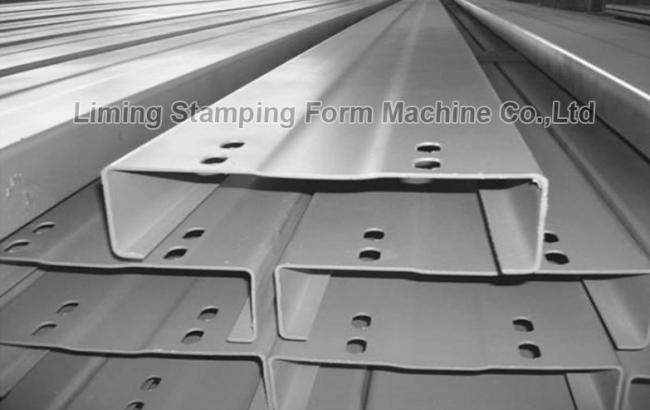

The complete equipment of "C purlin roll forming machines of various specifications and models" includes automatic stamping, cutting and roll forming. It is fully automated by the computer PLC.
Our company is committed to the development and production of "C purlin roll forming machines of various specifications and models". More than 20 specifications such as C, Z and C/Z two-in-one.
"C purlin roll forming machines of various specifications and models" are the latest machines in this field. Has a complete model, complete configuration and strong strength
"C purlin roll forming machines of various specifications and models" are characterized by improving productivity in terms of production methods and practicality.
Technical parameters of C Purlin Roll Forming Machines Of Various Specifications And Models
| Raw material | |
| Material | colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 1-3 mm |
| Roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft material | high grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 90mm |
| Main frame | 300 H steel |
| Side plate thickness | 16 mm |
| Chain size | 1 inch |
| Forming steps | 12 stations |
| Productivity | 20-25m/min |
| Hydraulic station power | 22kw |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7500*1150*1510mm |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic Guide Column |
| Cutter materia | Cr12 Heat Treatment |
| Electronic control system | PLC (Delta) Touch Screen |
| Color | Blue and orange |
