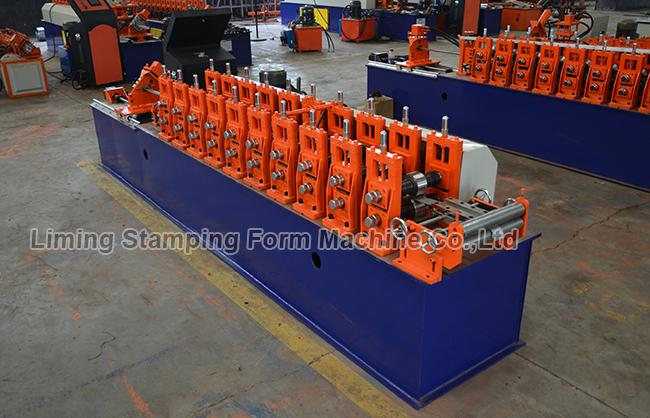

Automatic Servo Cutting Metal Stud Track U Shape Light Steel Roll Forming Machine
Automatic Servo Cutting Metal Stud Track U Shape Light Steel Roll Forming Machine
Mr. Khalid, a Jordanian customer, is a company that sells and installs building materials. He needs a cheap Stud track u shape light steel roll forming machine. Because it is selling building materials, the customer wants to increase production. Ask if we can change the configuration On the premise of increasing the speed, we recommended the automatic servo shearing system to the customer. We also informed the customer that the other configuration of the machine will remain unchanged because of the increased speed, which will increase the wear and tear of the configuration, but the customer can quickly sell building materials. Withdraw the funds, and then change the cooperation. Finally, the customer chose our Automatic Servo cutting metal Stud track u shape light steel roll forming machine.
Main parameters of U Shape Light Steel Stud Form Machine:
| Article No. | Item Name | Stud Track U Shape Light Steel Roll Forming Machine |
| 1 | Width of feeding material | <1000 mm coil sheet |
| 2 | Thickness of feeding material | 2 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 70 mm |
| 5 | Productivity | 20-35 m/min |
| 6 | Rollers' material | Bearing steel |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 3 ton |
| 9 | length | 7 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.5 inch |
| 16 | Cutting system | Hydraulic cutter |
