0.5-1.2mm Galvanized Steel Omega Light Steel Keel Hat Shape Channel Roll Forming Machine

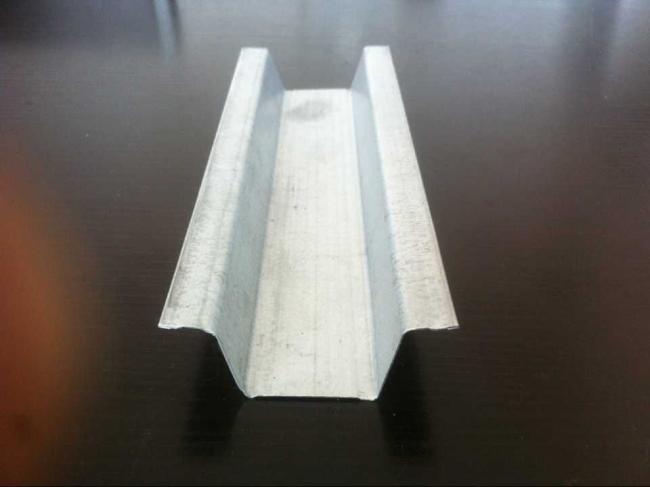

1. Introduction of Omega Light Steel Keel:

Brand Model Thickness Length

LM Furring channel 35*22*22*68 0.3-1.5 2000-15000
LM Furring channel 50*22*22*85 0.3-1.5 2000-15000
LM Furring channel 35*40*40*70 0.3-1.5 2000-15000
LM Furring channel 38*17*17*55 0.3-1.5 2000-15000

Omega Light Steel Keel Features: High-quality galvanized iron, waterproof, fireproof and moisture-proof

2. Product description of Omega Light Steel Keel:

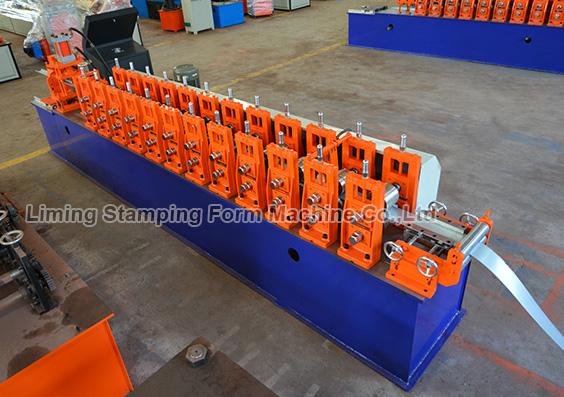

Omega Light Steel Keel Roll Forming Machine can produce ceiling light steel keel for use in your area. Omega Light Steel Keel Roll Forming Machine uses high-quality cold-rolled continuous hot-dip galvanized coils as raw materials to produce thin-walled steel with a cold-bending process, with a thickness of 0.3mm-1.5mm. The light steel keel has advanced technology and excellent quality, which fully meets the requirements of international specifications.

3. Product function of Omega Light Steel Keel:

Light steel (paint) keel ceiling has the functions of light weight, high strength, waterproof, shockproof, dustproof, sound insulation, sound absorption, constant temperature, heat insulation, etc. It also has the advantages of short construction period and simple construction. It is widely used in factories and hotels , Shopping malls and office buildings and other interior decorations, which are widely used by users and design units.

Main parameters of Keel Frame Roll Forming Machine
