5.4T C-Type Keel Forming Machine Reducer Drive For Heavy Roof Decoration
5.4T C-Type Keel Forming Machine Reducer Drive For Heavy Roof Decoration
What is a C-type keel forming machine?
C-shaped keel forming machine is a fully automatic machine that rolls galvanized steel strips into C-shaped keels through the processes of combining, uncoiling, forming, cutting, and receiving. The C-type keel forming machine is composed of an uncoiler, a feeding frame, a forming host, a shearing machine, a receiving platform, an electric control system, and a hydraulic oil pump system.
Configuration parameters : 5.4T C-Type Keel Forming Machine Reducer Drive For Heavy Roof Decoration
| Under Frame | Steel plate welding |
| Sidewall | Memorial archway type |
| Transmission | Gear |
| Voltage Standard | 380V/50HZ/3Phase |
| Motor Power | 5.5kw+3.0kw |
| Forming Speed | 25m/min |
| Roller Station | 12Steps |
| Shaft Diameter | 70mm Solid |
| Shaft Material | 45# steel |
| Roller Material | GCr15 |
| Cutting Type | Hydraulic Tracking Cutting |
| Cutting Die Material | Cr12 |
| Control Method | Automaitc PLC system |

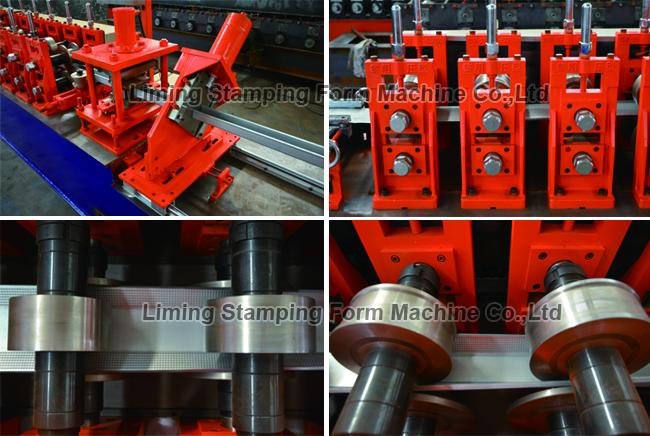

The C-type keel forming machine developed by Liming adds a stamping device on the basis of the original C-type keel forming machine, which makes the installation of the produced profiles easier and faster, helps you quickly open the market and win market competitiveness.
At the same time, the C-type keel forming machine adopts advanced PLC electronic control system, which simplifies the complex operation and control process.
